GM DC330 Nano
Year of Manufacture2019
First installationJuly 2020
Web Width50-330 mm
Speedup to 72 m/min
Substrate Thickness20-200 µm
Unwind UnitMax Diameter 500 mm
Web GuideBST Ultra Sonic with Web Tension Control

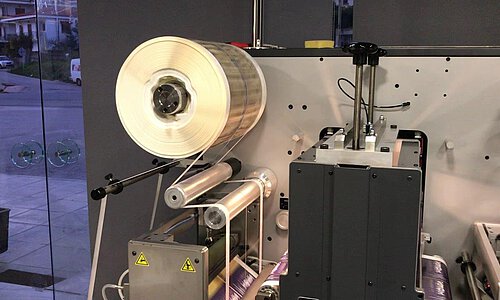

Lamination UnitYes, max Diameter of 300 mm
Die Cut Repeat Length2" up to 22"
Plate Size50,8-558,8 mm
Waste RewindMatrix Waste Rewind
Splice TableYes

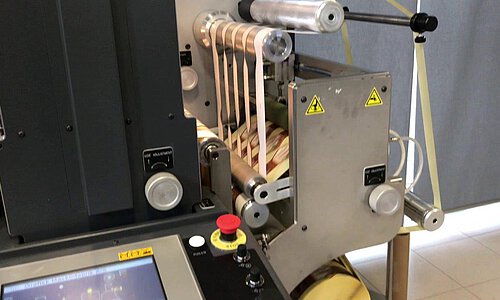

SlittingSlittingUnit with pneumatic crush knives
RewinderSingle Rewind for max Roll Diameter 400 mm
GUITouch Screen Control Panel
Machine DimensionsW 160 cm D 170 cm H 150 cm
PowerInput Voltage 3 x 400V+N+PE, 16 A, 5 bar air
Description
The DC330Nano is the most compact unit in GM’s series of label-finishing machines. It Is built on the same rock-solid die-cut unit as the biggest DC unit. A solid metal frame ensures a vibration-free basis for the four large servo motors that drive the web. The DC330 Nano can be set up as an inline extension to a digital label press, allowing the web to continue directly into the converter from the digital press or as a standard offline unit. With semi-rotary die cutting, lamination, and a genuine pneumatic knife box with crush knives, it offers all you need for short-run label production. If required, the DC330Nano can work as a “Blanco” label die cutter as well.
