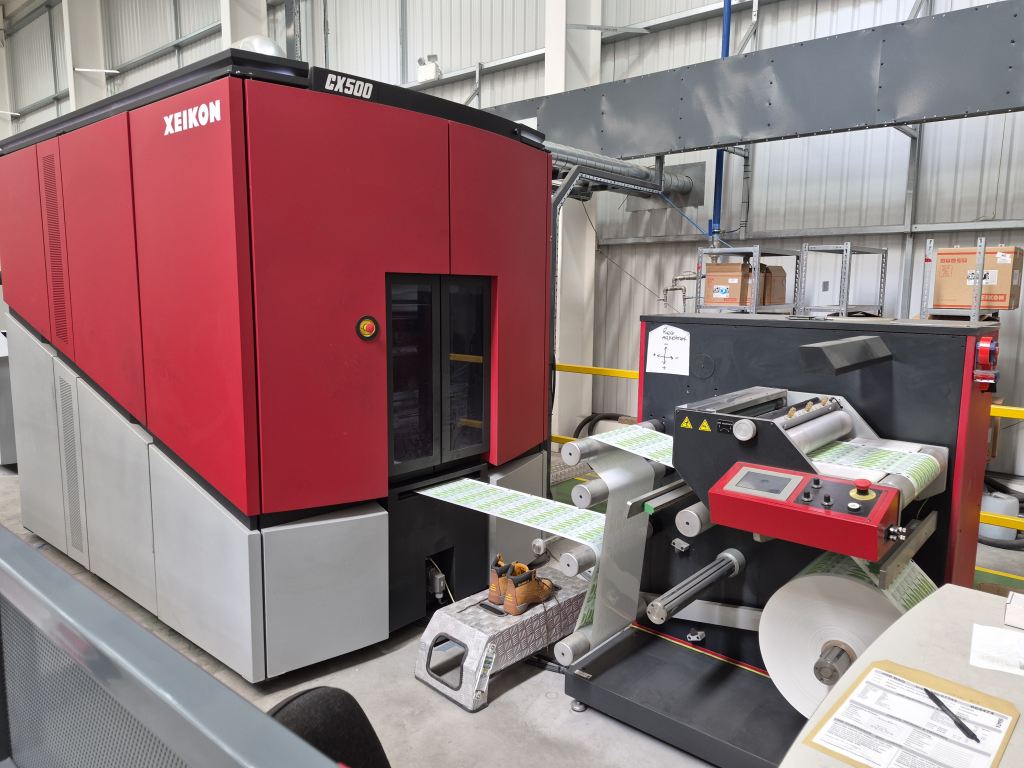

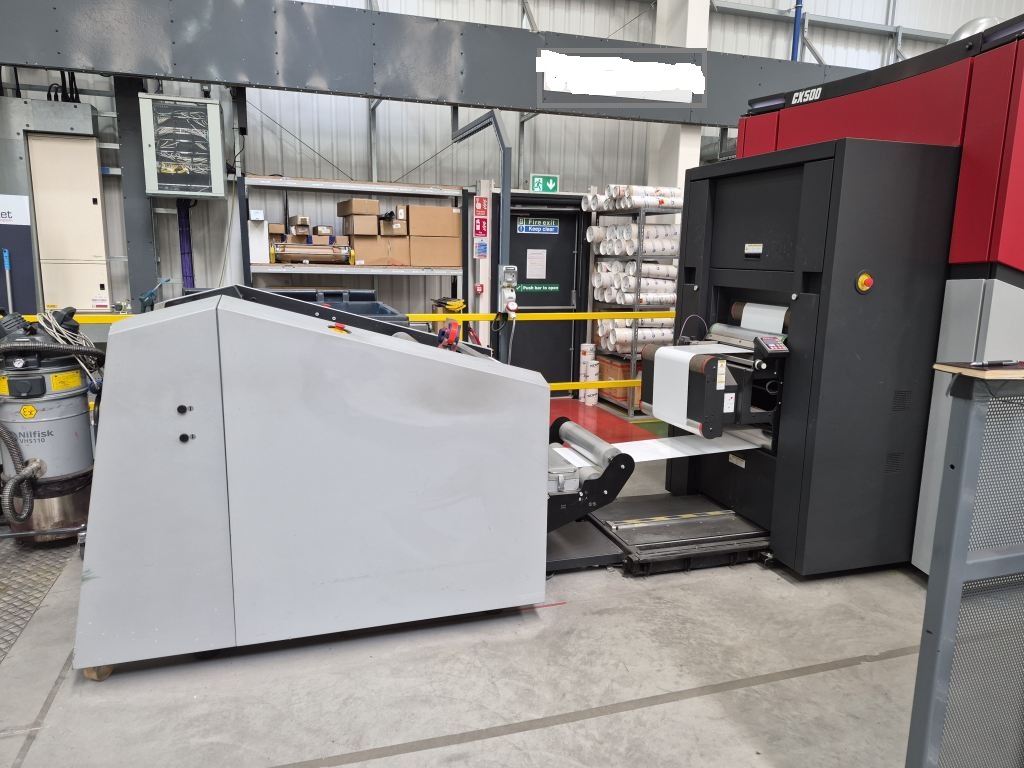

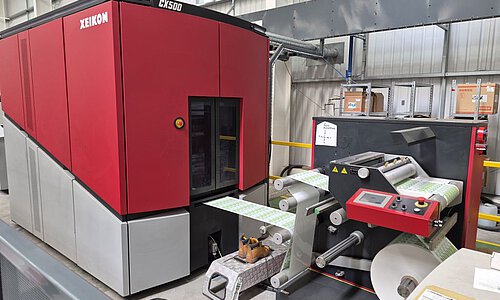

Xeikon CX500
Manufacturer, ModellXeikon CX500
StatusXeikon Gold Service
Date of InstallationMarch 2020
Print TechnologyToner electrophotography
Imaging HeadHigh-Precision LED Matrix
Printing EnginesOne-Pass, 5 (CMYK+White/Spot/Clear)

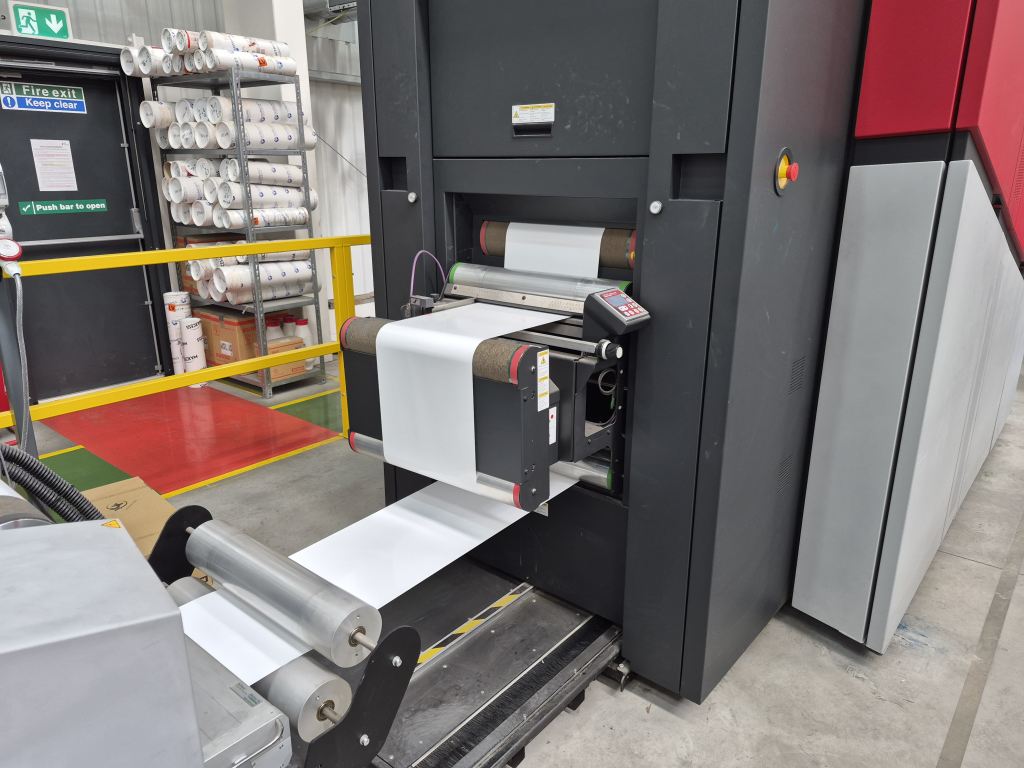

Media InputWeb-fed

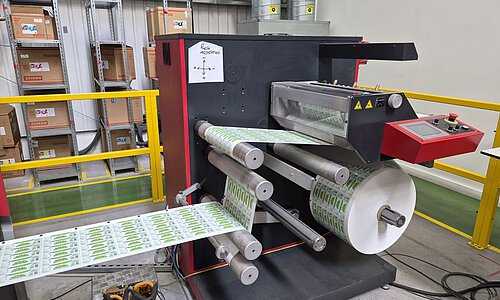

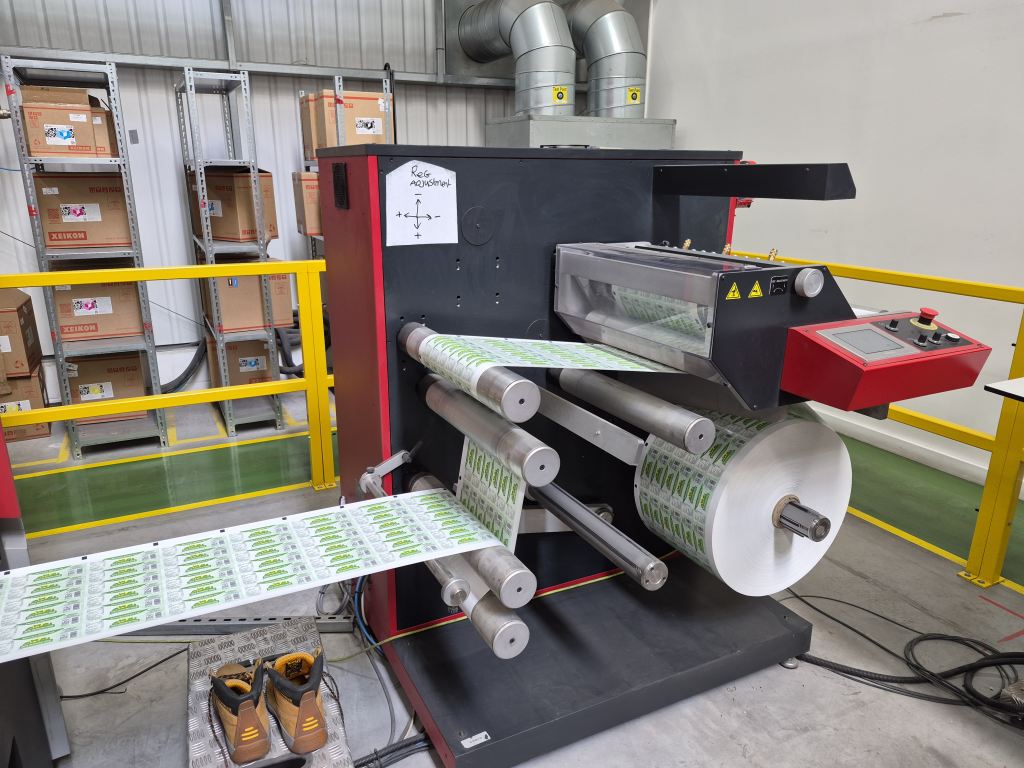

Media OutputRewinder
Imaging Quality1200 dpi, variable dot density
Media Width250-520 mm
Max. Media Width520 mm
TonerXeikon QA-CH Toner (meeting FDA regulation)
Printing Speedmax 30 m/min
Media Weight40-350 g/m², 550 µm
SubstratesPressure-sensitive SA/PS Label, Paper, PP, PE, PET, paperboard and unsupported BoPP/oPP, co-extruded film

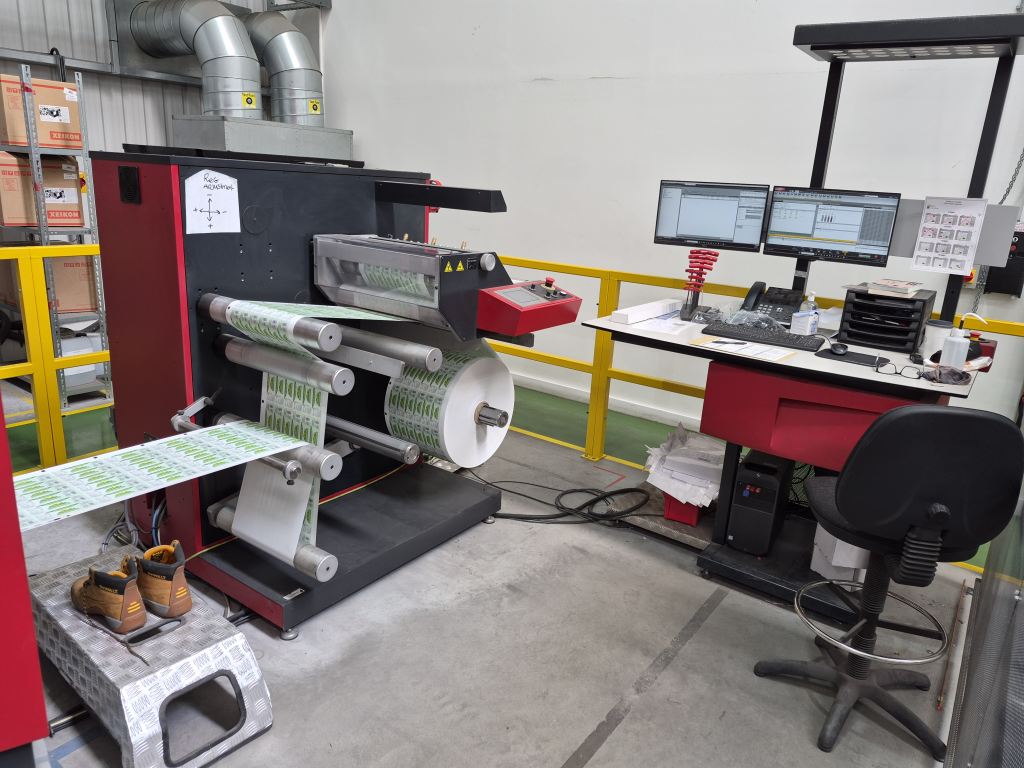

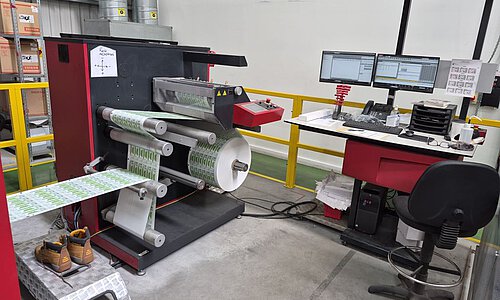

Digital Front EndXeikon X-800
SoftwareXeikon MyPress Controller
SpectrometerInline, for continuous tone curve control and colour calibration during live production

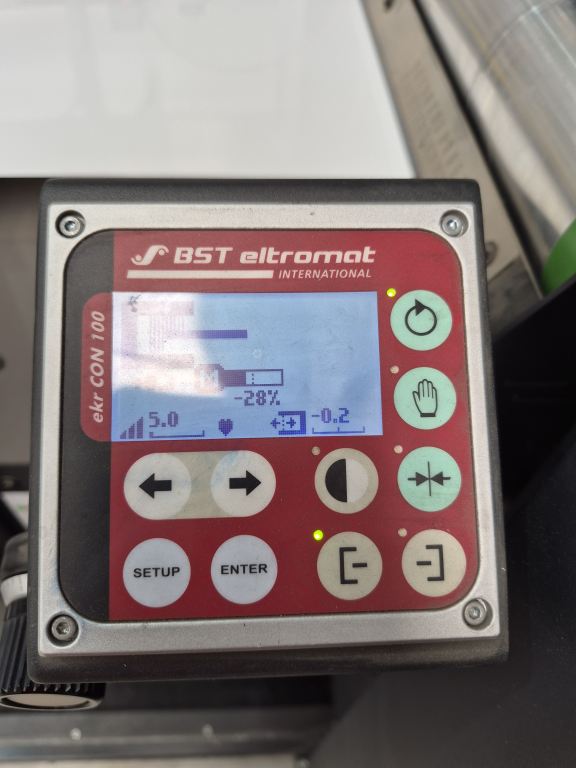

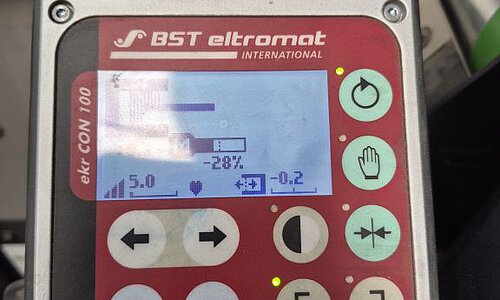

Active Web AlignmentYes
Description
Year of manufacture 2019, First Installation March 2020, ONLY 2,86 Mio. printed meters (status from June 2026), Roll-to-roll configuration met variable repeat length up to 42 m, LED-array based, Dry Toner Electrophotography, Xeikon QA-CH Toner (meeting FDA regulation), Color Configuration 5/0 simplex (CMYK and White), Media Width 250 mm - 520 mm, Imaging Width max 508 mm, Media weight 40 – 350 gsm | Media caliper 40 – 550 microns, Web Speed max 30 m/min, Productivity max 936 sqm / hour, In-Line Spectrophotometer for continuous tone curve control
and colour calibration during live production , Active Web Alignment, Resolution 1.200 dpi with variable dot density, Digital Front End Xeikon X800 with Control PC and 2 monitors, enabling variable data printing (VDP) and Inline Color Profiling, Xeikon MY PRESS Controller, Substrates: Pressure-sensitive SA/PS Label, Paper, PP, PE, PET, paperboard, and unsupported BoPP/oPP, co-extruded film. Machine is still in Xeikon GOLD Service Contract, Machine is still in production for small runs
