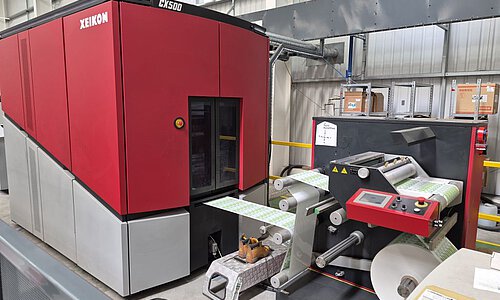

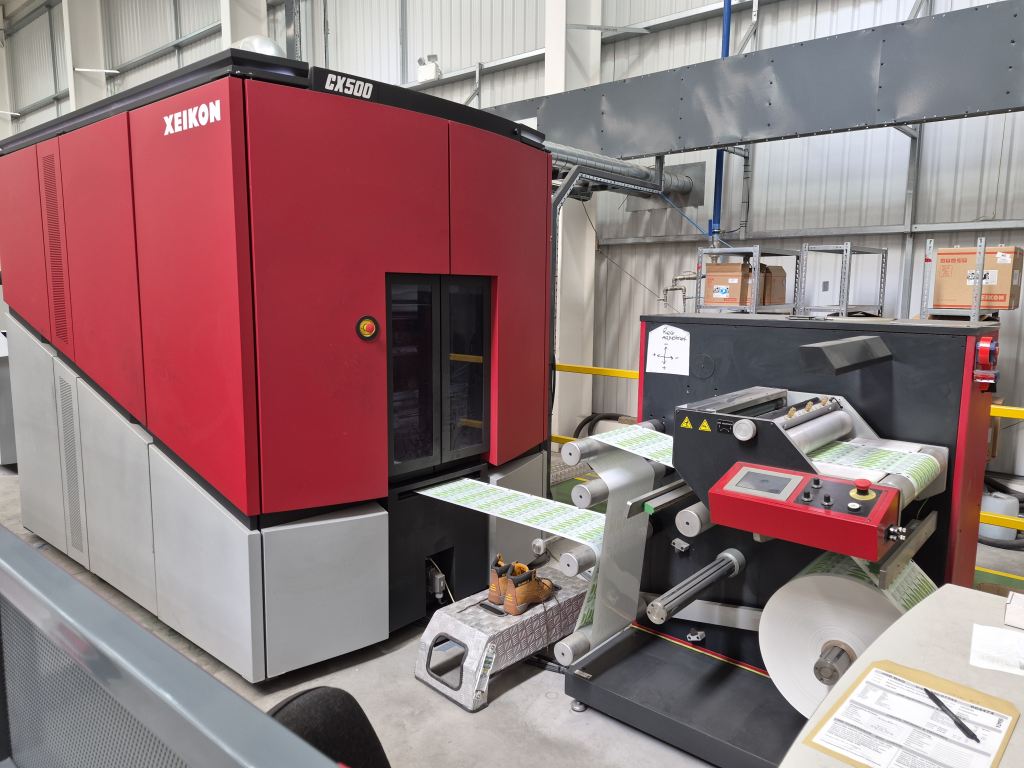

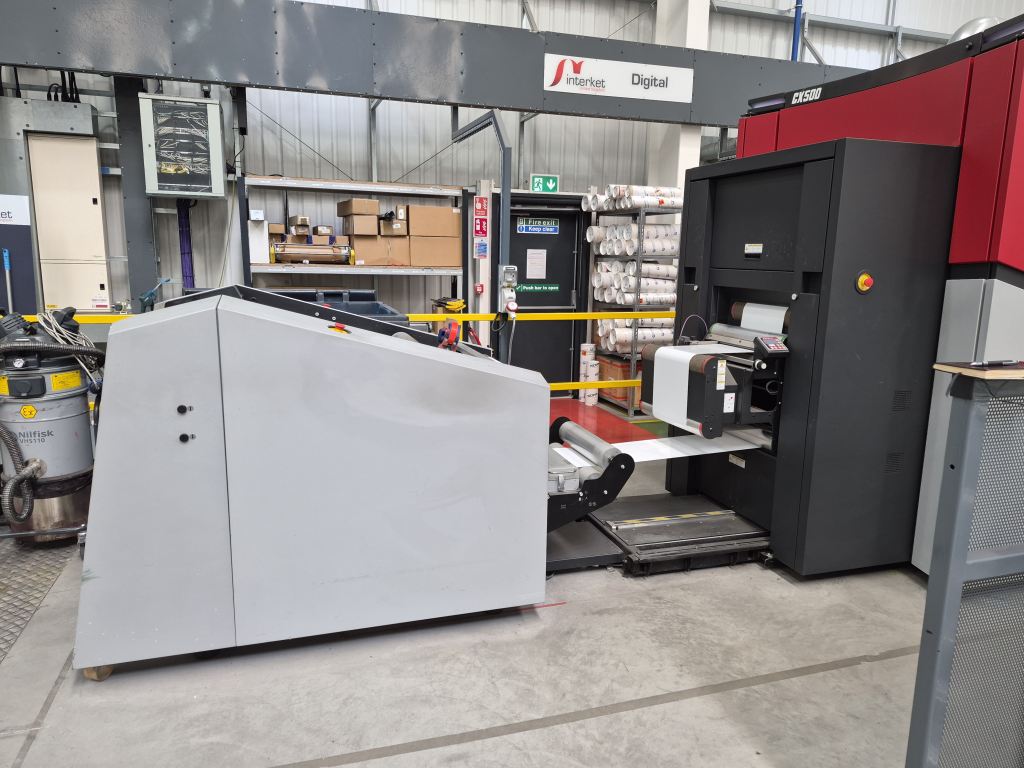

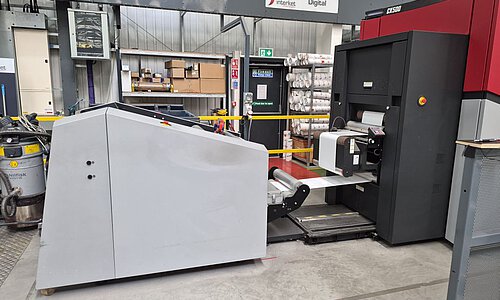

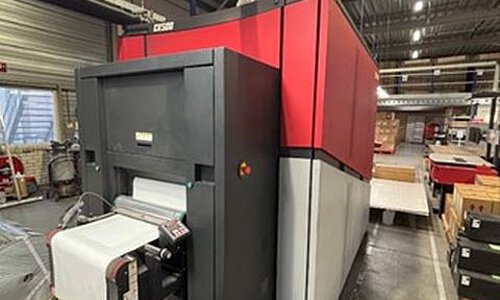

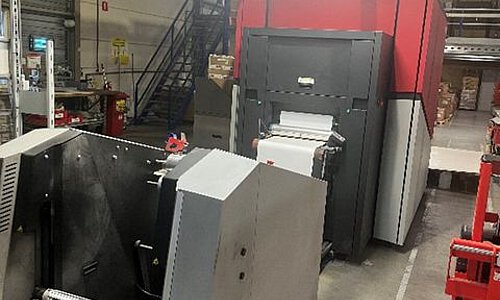

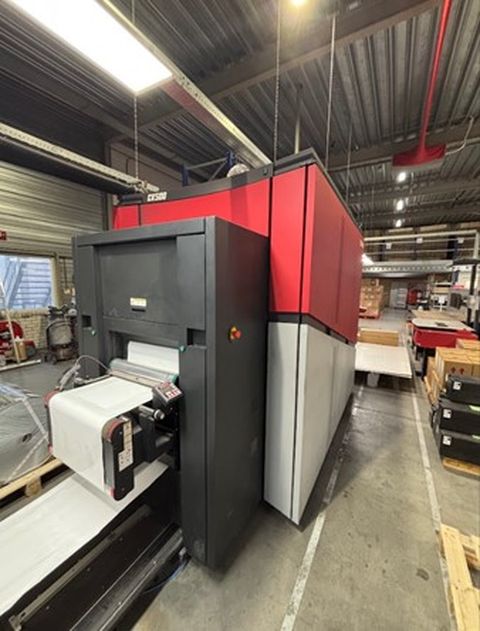

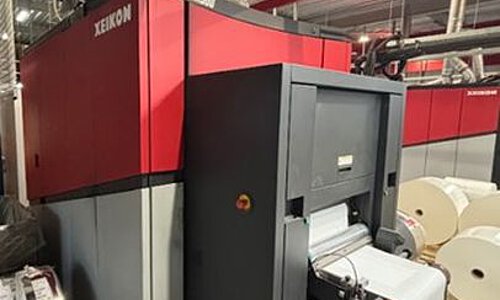

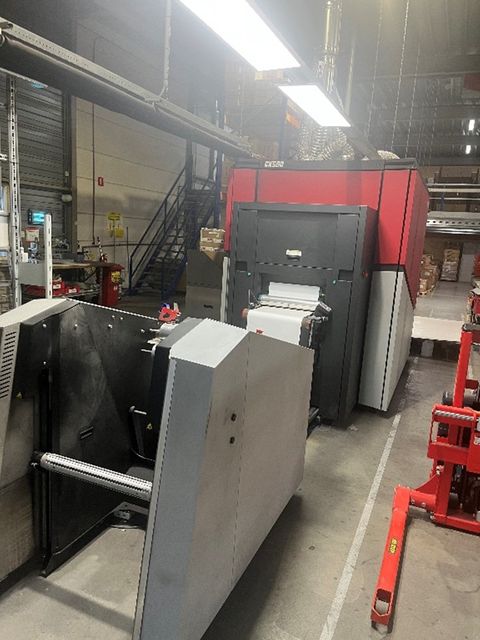

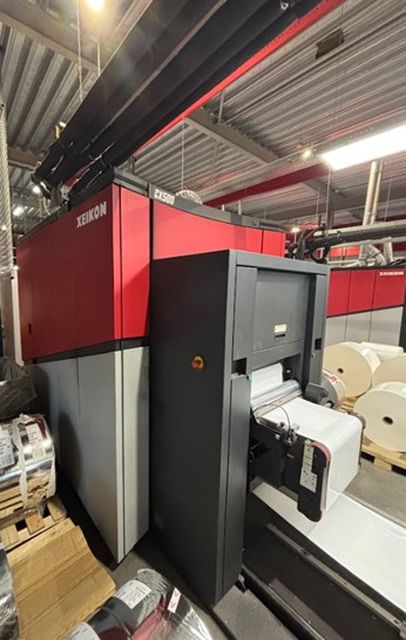

Xeikon CX 500 + GM DC5V5 Finishing

Manufacturer, ModellXeikon CX500 + GM DC5V5 Finishing
Date of Installation2018
Print TechnologyDry toner electrophotography

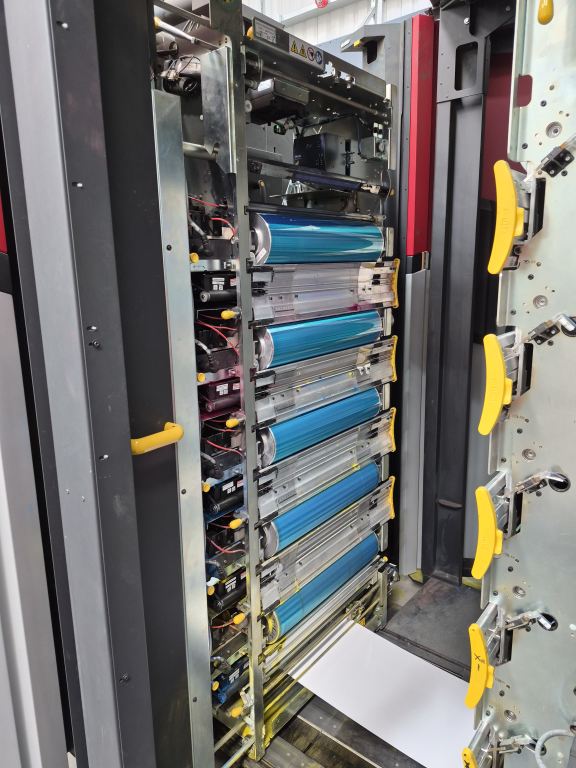

Imaging HeadHigh-Precision LED Matrix
Resolution1200 dpi with variable dot density

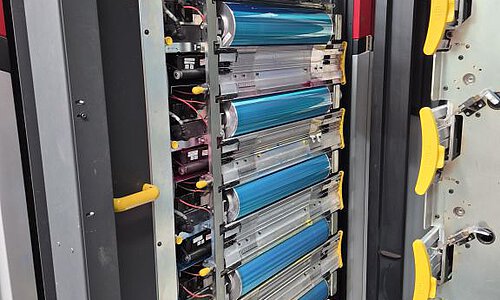

Printing EnginesOne-Pass, 5 (CMYK+White/Cleat/Spot)
Media InputWeb-fed

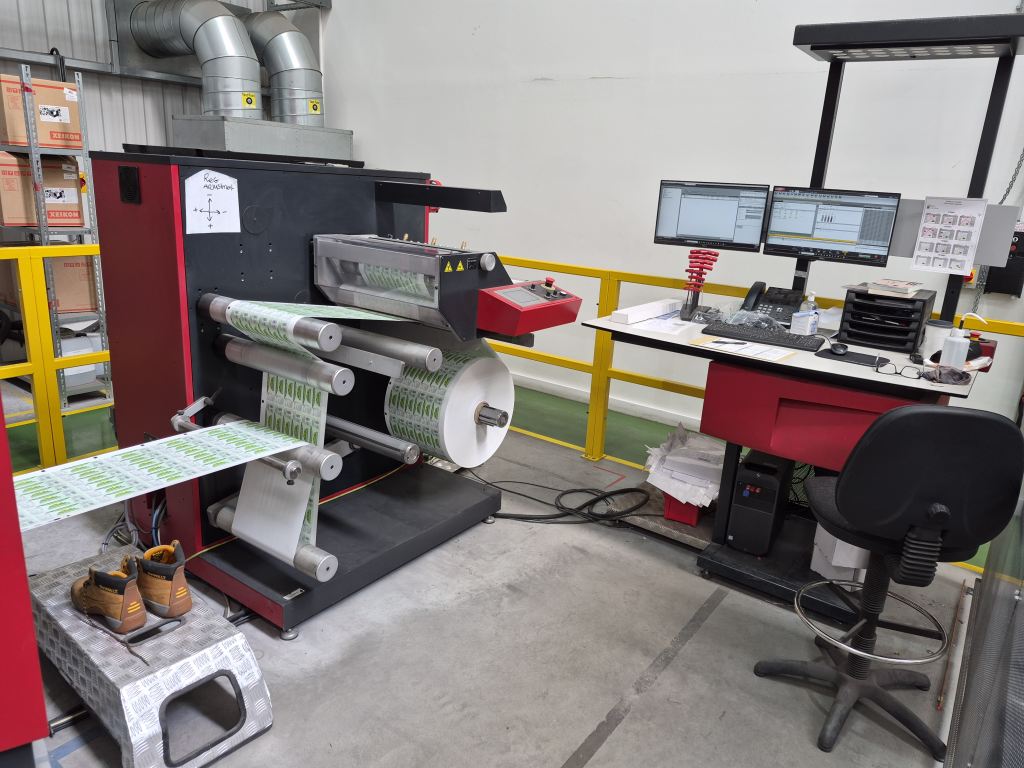

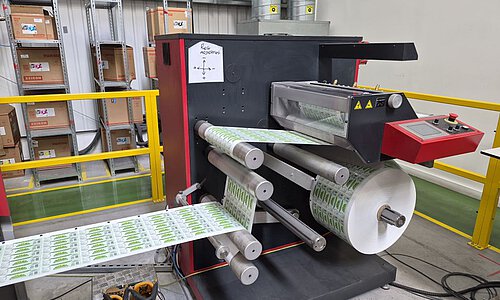

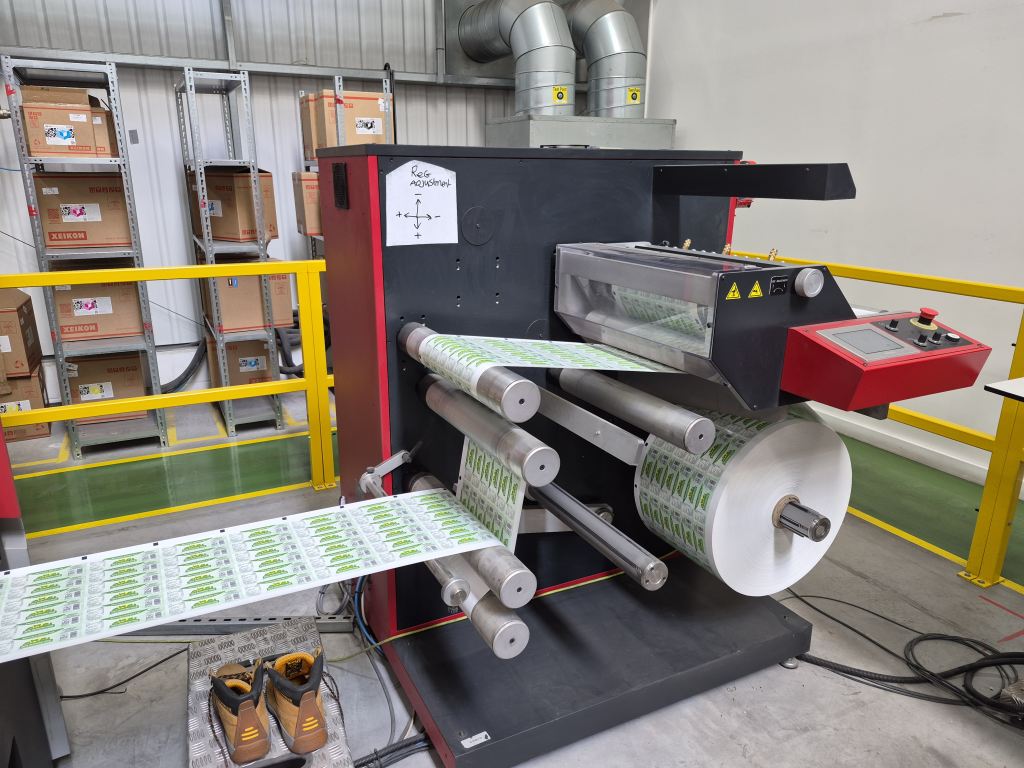

Media OutputRewinder
Max. Media Width520 mm
TonerXeikon QA-CH Toner (meeting FDA regulation)
Printing SpeedUp to 30 m/min
Media Weight40-350 g/m², 550 µm
Digital Front EndXeikon X800
Software VersionMy Press

Description

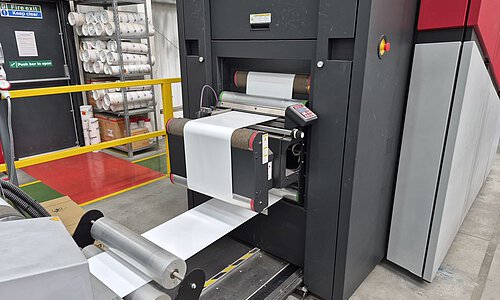

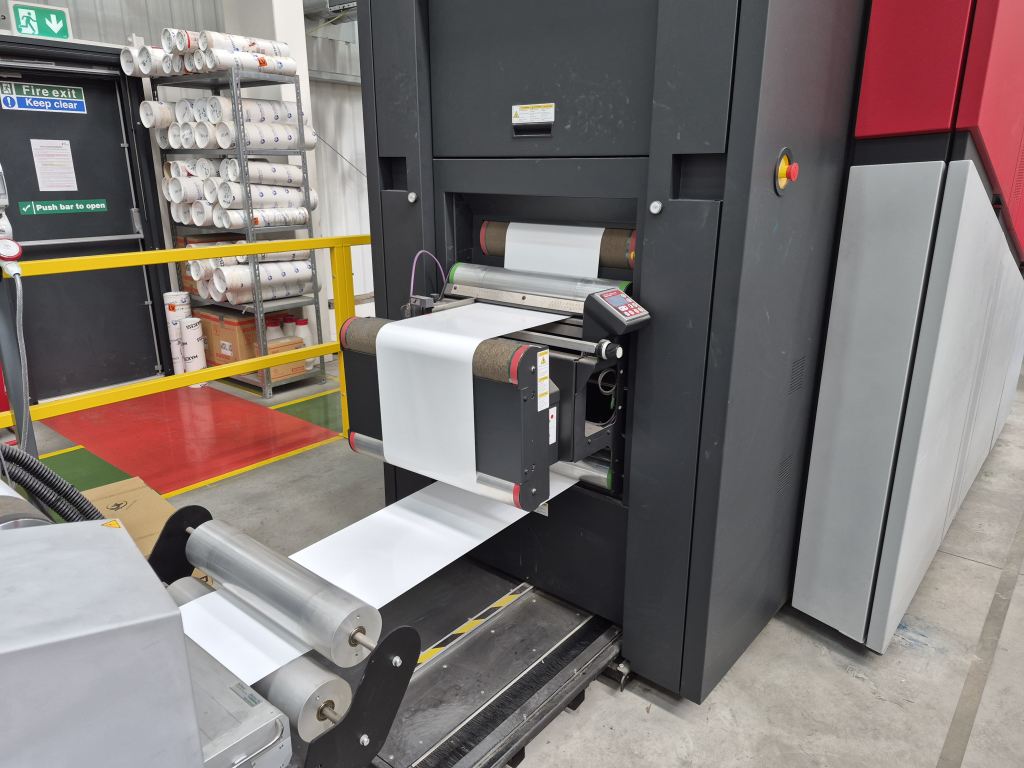

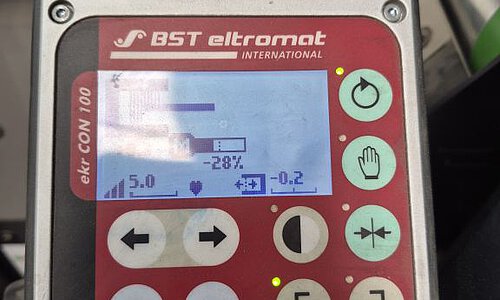

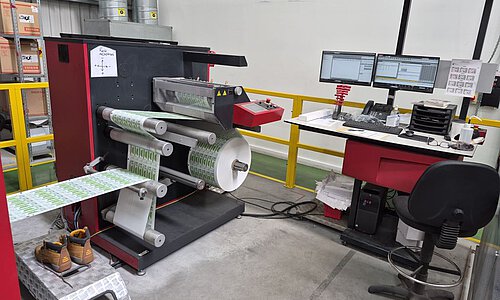

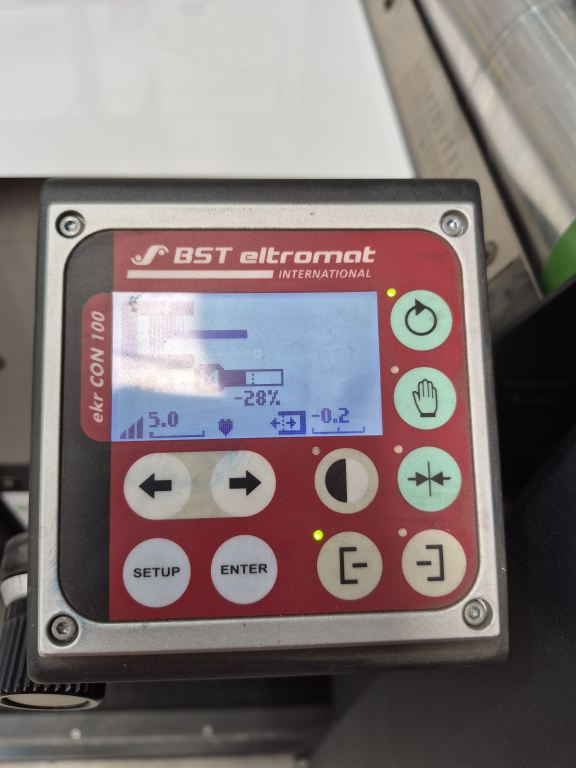

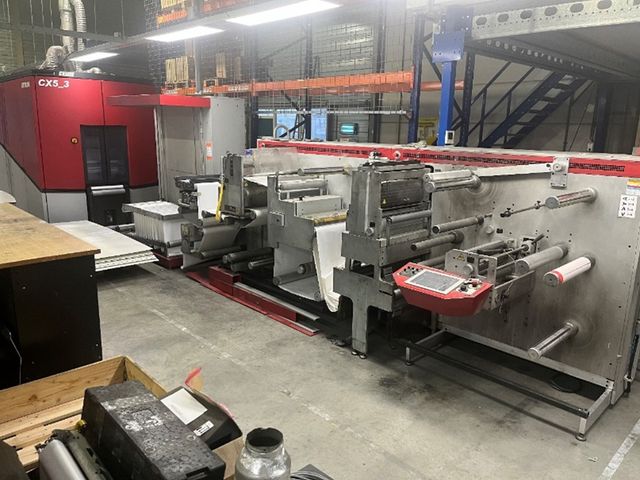

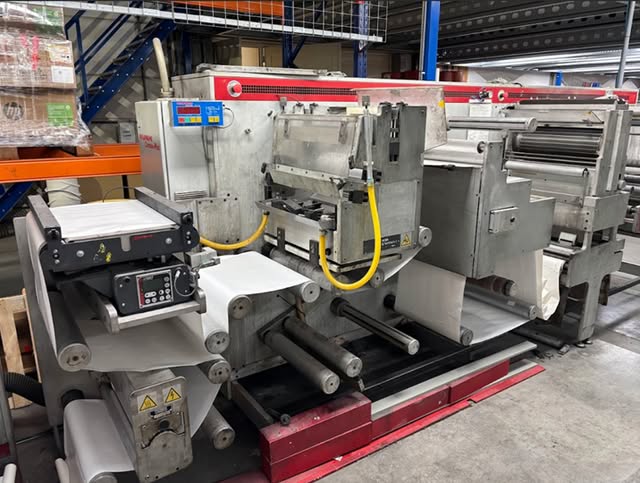

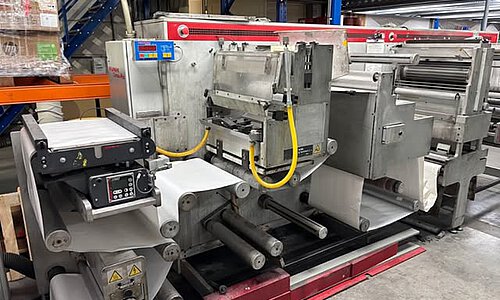

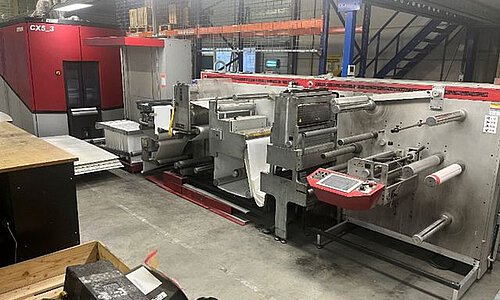

+++ Xeikon CX500 | Digital Label Press | Year of manufacture 2018, Roll-to-roll configuration met variable repeat length, LED-array based, Dry Toner Electrophotography, Xeikon QA-CH Toner (meeting FDA regulation), Color Configuration 5/0 simplex (CMYK and White), Media Width max 520 mm, Imaging Width max 508 mm, Media weight 40 – 350 gsm | Media caliper 40 – 550 microns, Web Speed max 30 m/min, Productivity max 936 sqm / hour, In-Line Density Control, Active Web Alignment, Resolution 1.200 dpi with variable dot density, Digital Front End Xeikon X800 with Control PC and 2 monitors, Xeikon MY PRESS Controller, Machine is still in Xeikon Service Contract, Machine is still in production for small runs +++ GM DC5V5 | Finishing and Converting System | Year of manufacture 2018, Web Width 200 - 520 mm, Substrate Thickness 20 – 200 microns, Machine Speed - Semi Rotary up to 55 m/min, Unwind Unit - Diameter max 700 mm, BST Web Guide with splice table, Servo controlled Flexo Printing Unit, UV Drying Unit, Laminating Unit, Vetaphone Corona Unit, Die Cutting Unit - Die plate size 50,8 mm – 520,7 mm, Magnetic Cylinder Z 200, Waste Rewind with 500 mm diameter, Slitting Unit, 2x Rewinds, pre-installed Buffer-System for Xeikon Digital Press +++
84
Xeikon CX 500 + GM DC5V5 Finishing
