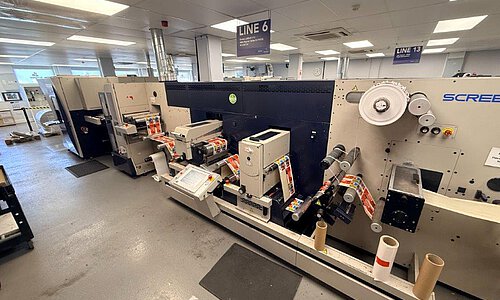

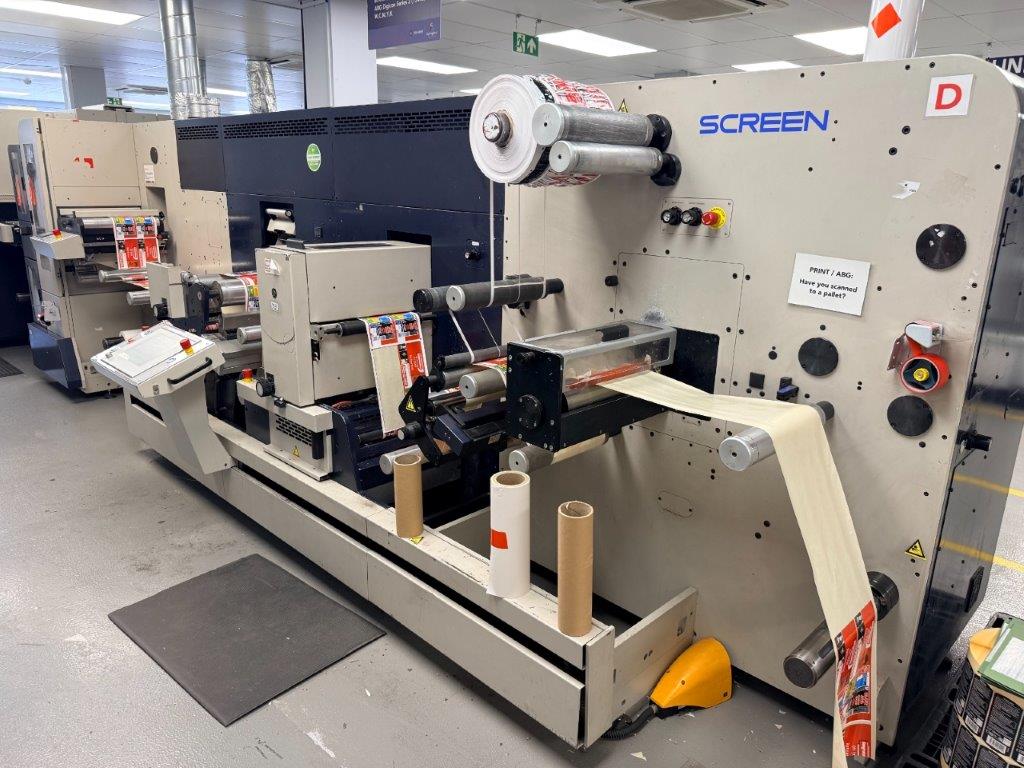

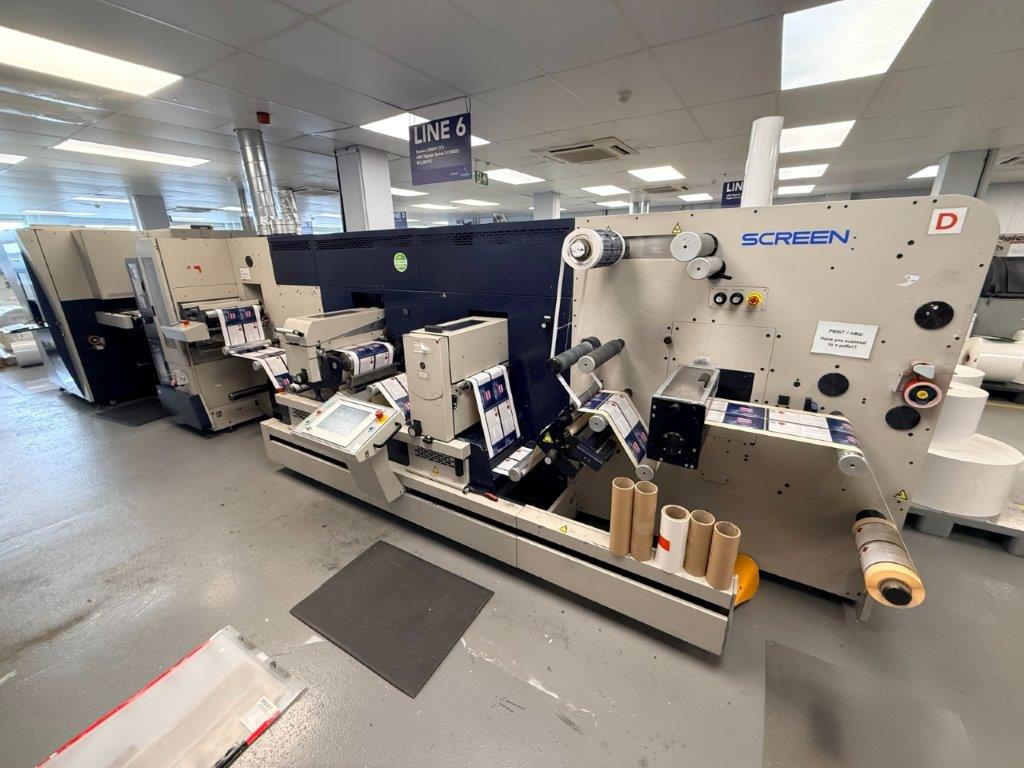

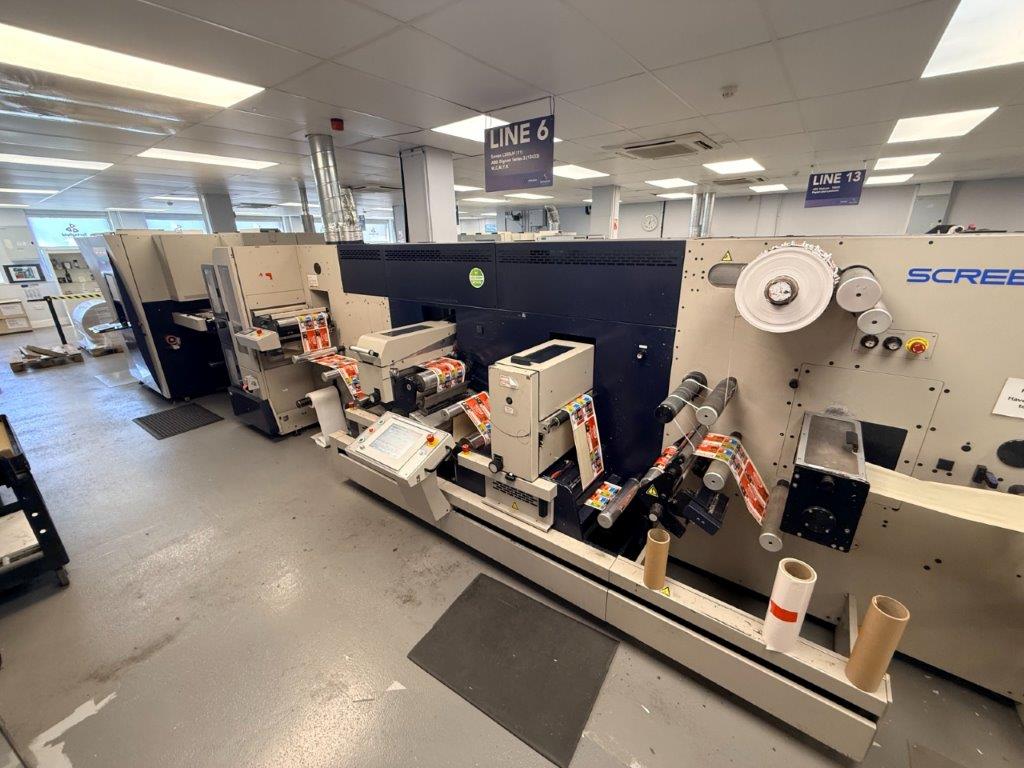

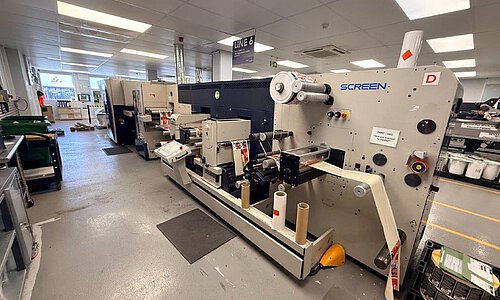

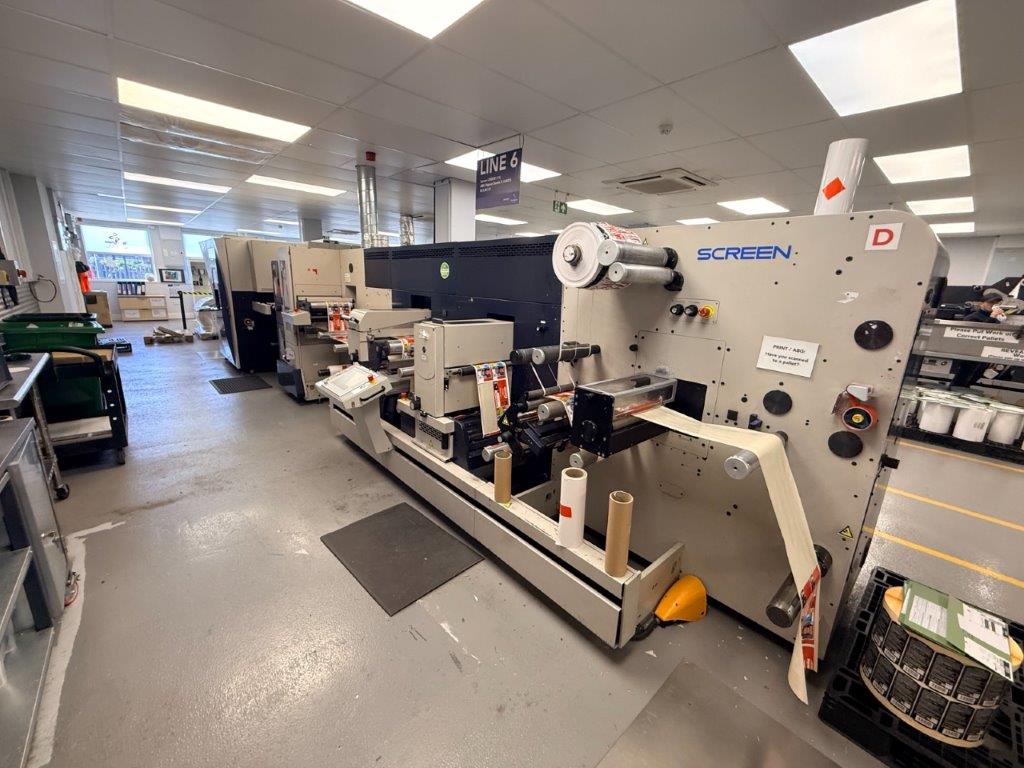

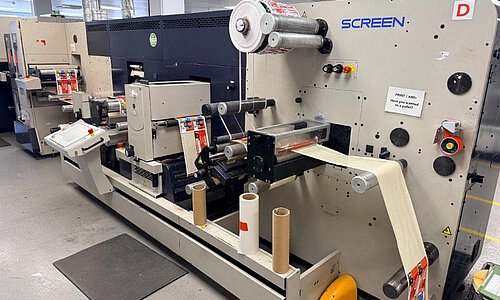

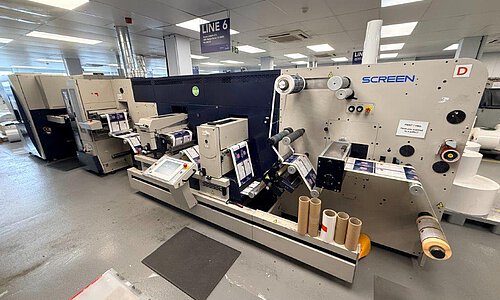

Screen Truepress Jet L 350 UV + ABG Digicon S3
Manufacturer, ModelScreen Truepress JET 350 UV + ABG Digicon S3
First installedJuly 2014
State of the ArtUV Inkjet Technology
ColorsCMYK + White
Dimensions PrintsystemW 342 cm | D 207 cm | H 201 cm
Required floor spaceW 5,40 m | D 4,80 m
Print-Technology UV-Inkjet-Technology
Printhead4 step grayscale, droplet size minimum 3pl
Resolution600 x 600 dpi
Web Width100-350 mm
Printing Width50,8 mm to 322 mm
Repeat length50,8 mm to 2.400 mm
Media Thickness0,09-0,35 mm
Printing SpeedUp to 16,1 sqm/min | Up to 50 m/min
Description

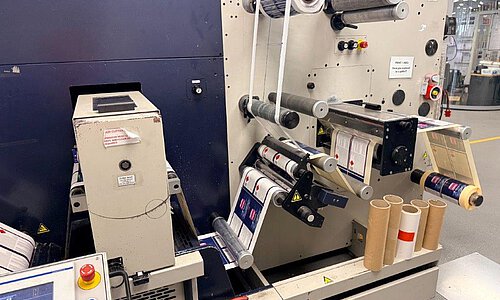

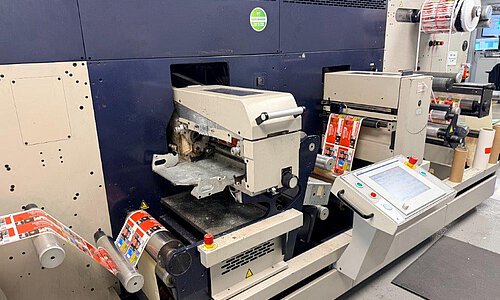

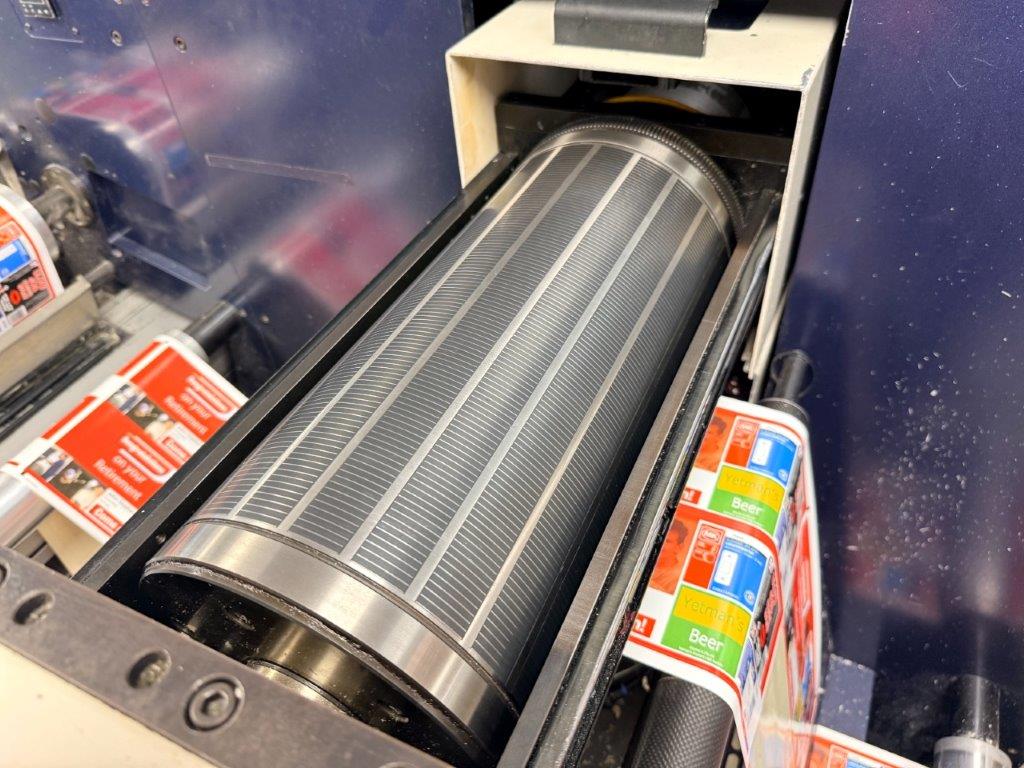

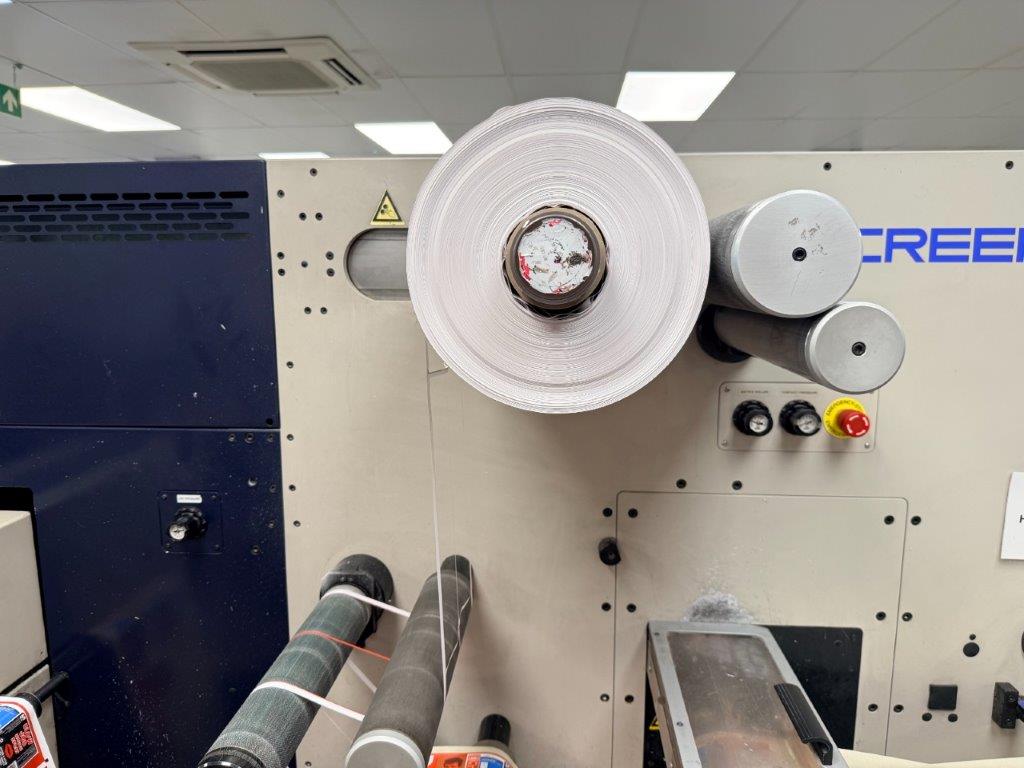

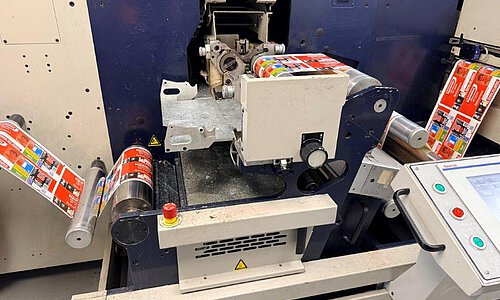

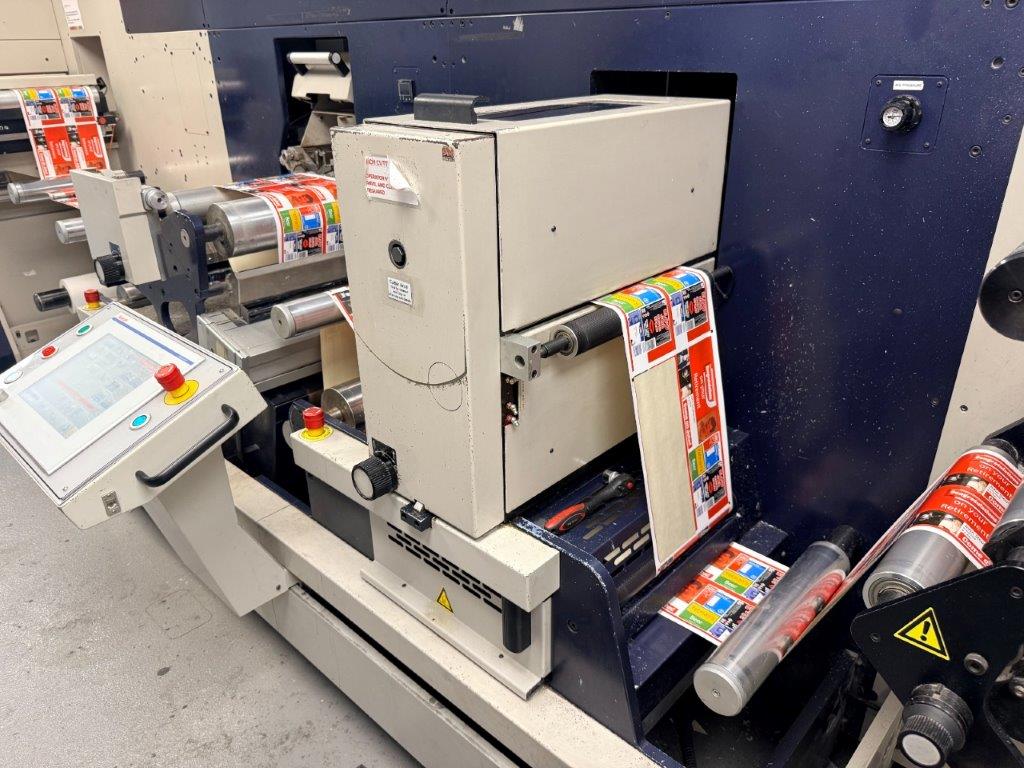

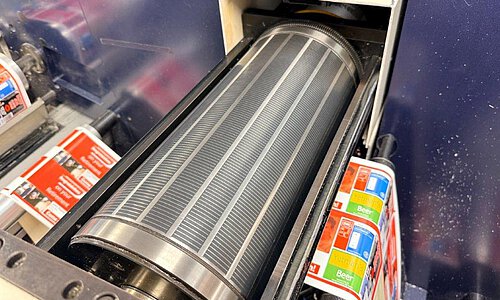

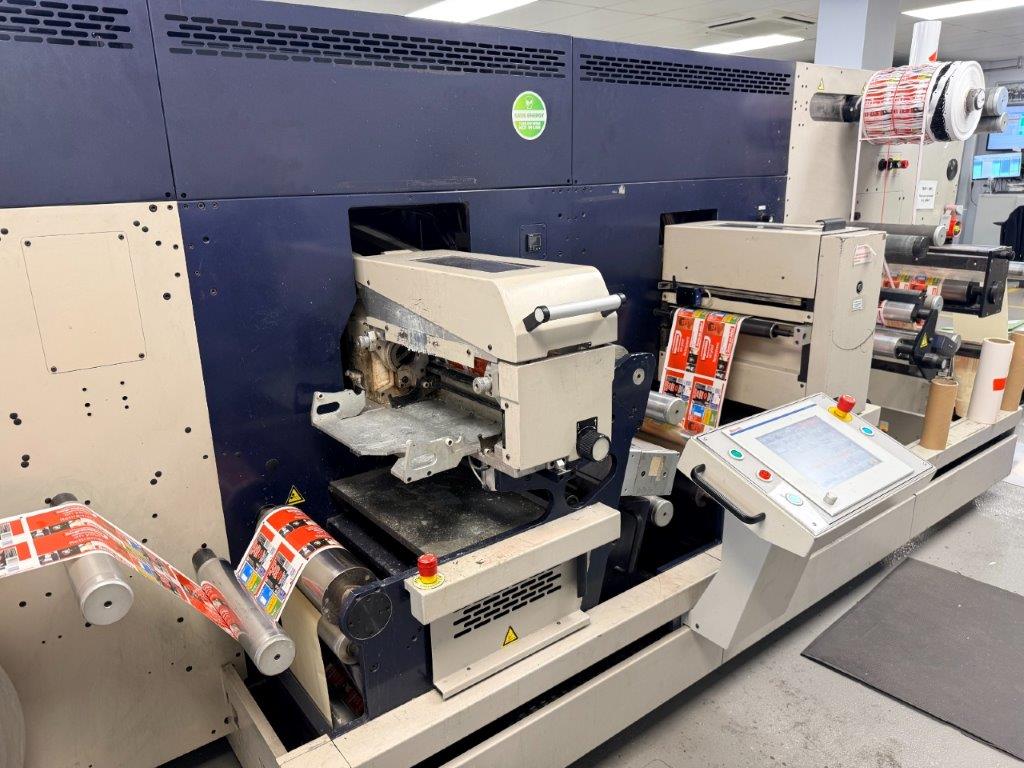

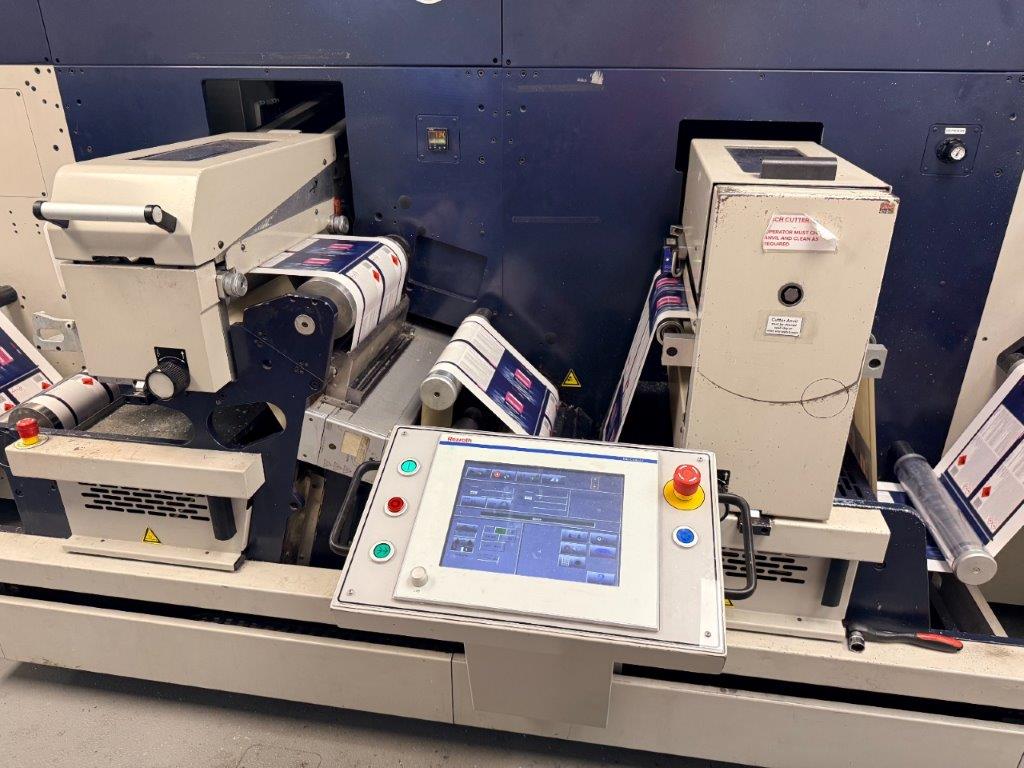

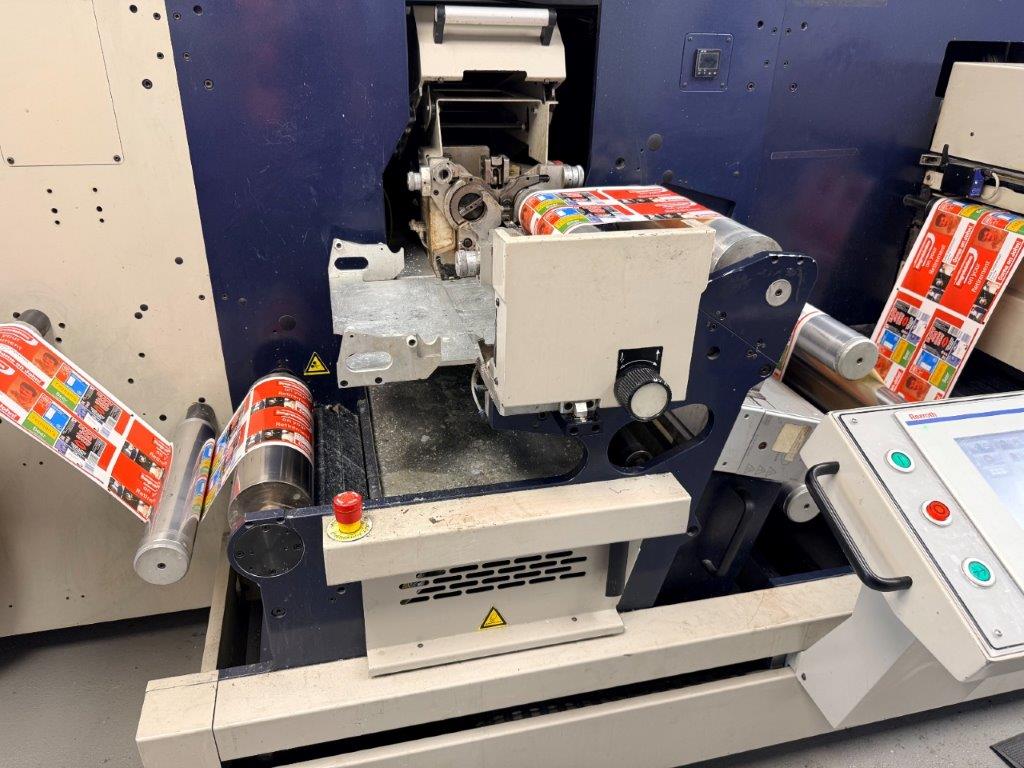

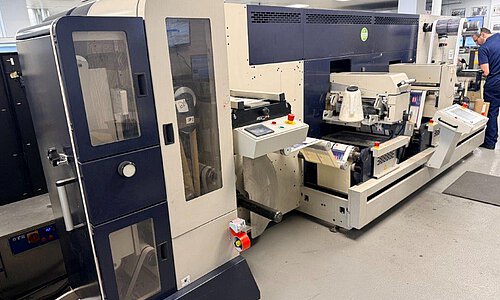

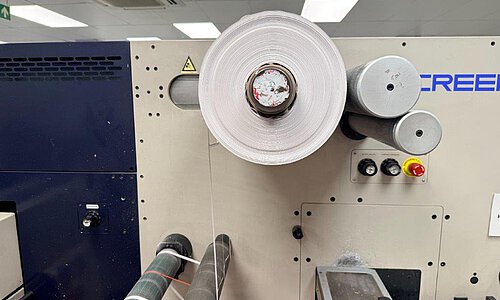

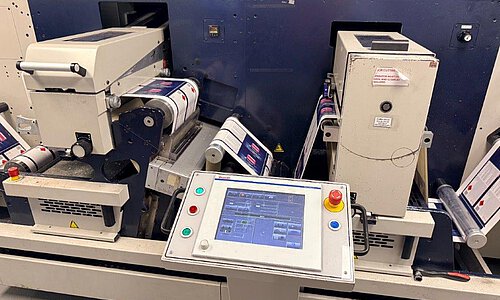

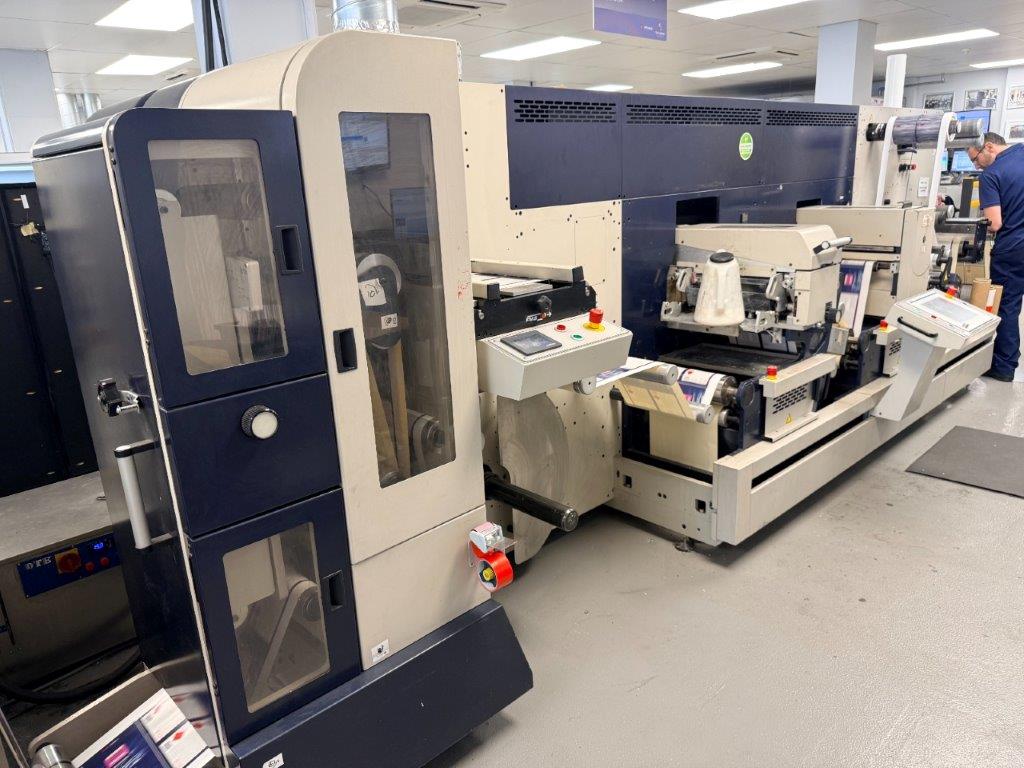

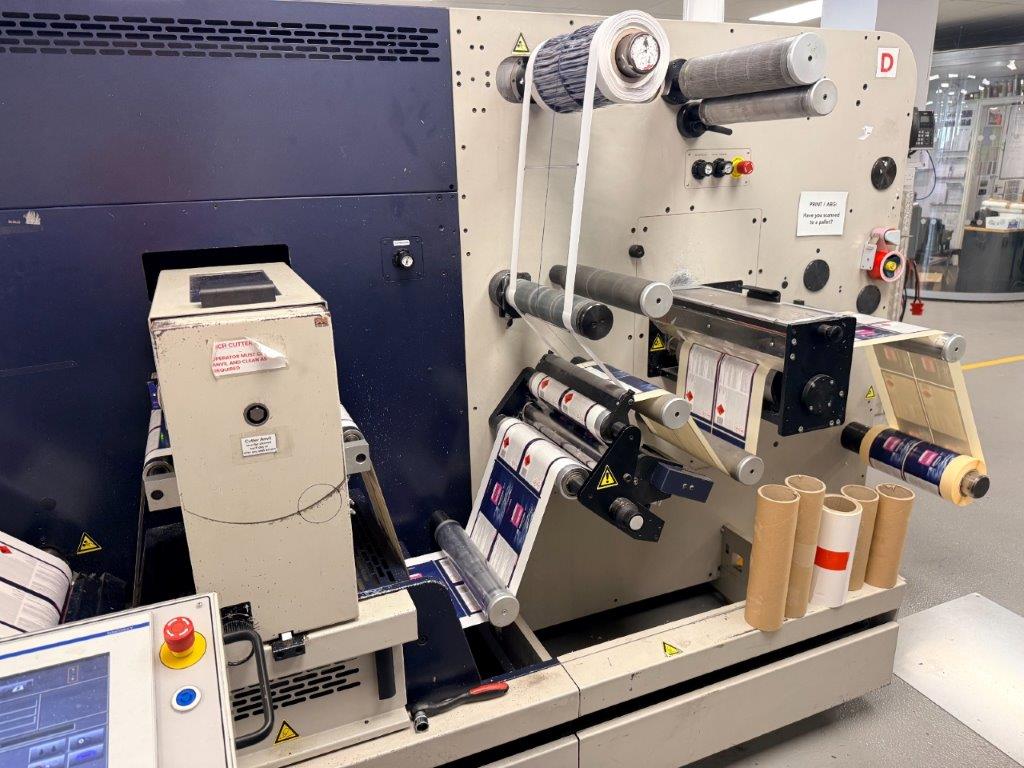

+++ Print Engine: Year of manufacture 2014, Printing Counter: 32,8 Mio. meters printed (status from May 2026), Main Unit with 5 Colours (CMYK and White), CMYK inkjet modules 50m/pm, White inkjet module 30m/pm, Unwind with web guide, Vetaphone Corona Treater, Teknek Web Cleaner +++ ABG Digicon S3: Year of manufacture 2014, In-line festoon for non-stop production with a digital press, Unwind for offline use, FMS electronic Web Guide with Ultrasonic Edge Sensor, Full-rotary Flexo Varnish Station, GEW UV Dryer, Hot Air Dryer for water-based varnish applications, Semi-rotary Die Station with re-regisstration, Electronic Dispro System, I-score Automatic, Back Scoring Unit, Waste Rewind with compactor roller, Rewind, Touch Screen HMI +++
