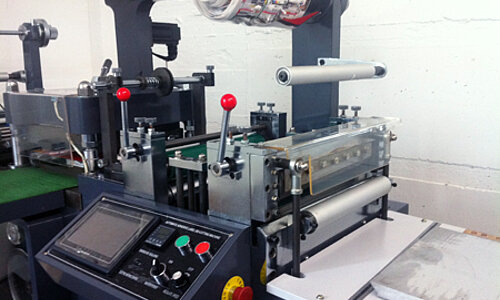

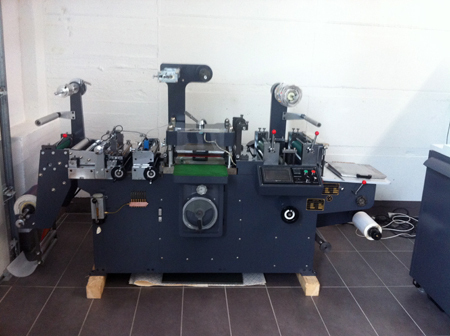

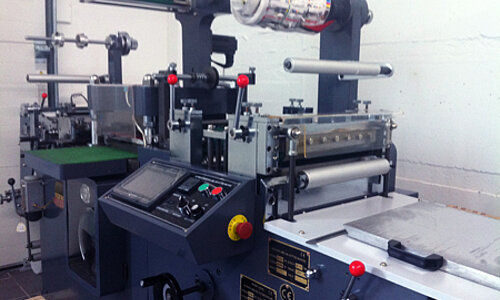

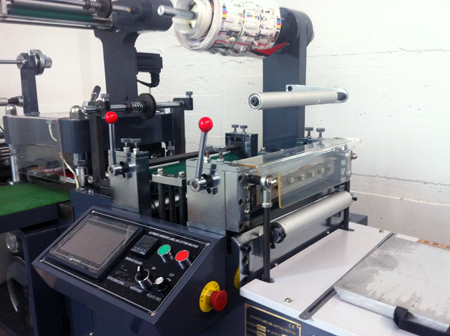

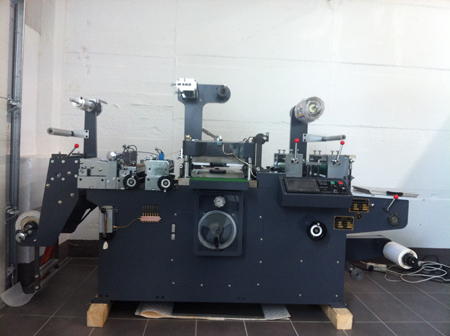

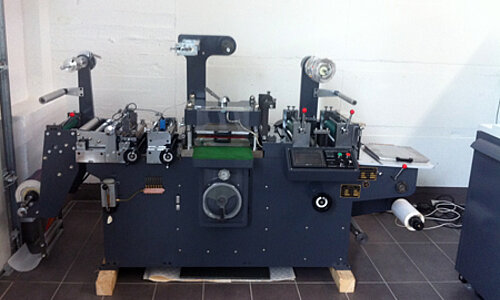

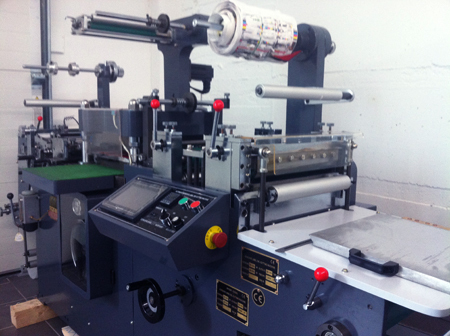

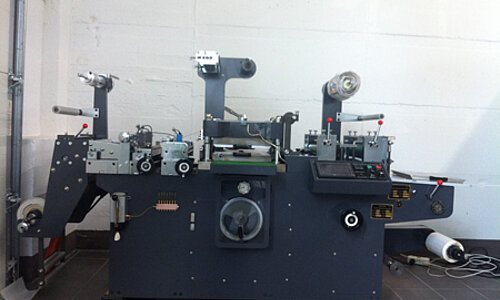

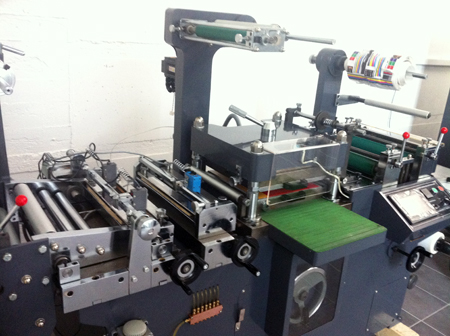

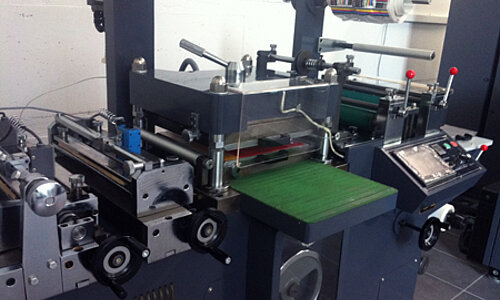

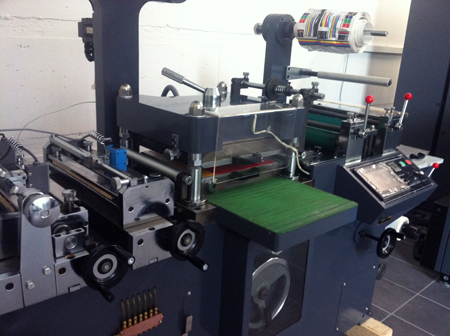

JORG Label Finishing Pro

Manufacturer, ModelJORG Label Finishing Pro
Web Widthmax. 320 mm
Core Size76 mm
Output Diameter, Unwindmax 500 mm
Punching Widthmax 300 mm
Punching Lengthmax 300 mm
Web Guide System ControlSensor controlled
Punching PrincipleFlatbed Die Cutting System
Punching SpeedUp to 20 m/min
Web Guide System ControlSensor controlled
Repeatability± 0,15 mm
UnwinderYes
RewinderYes
Waste Matrix RewindYes
Blackmark DetectionYes
Cold LaminationYes
Hot Foil StampingYes
DimensionsW/D/H 260 cm x 100 cm x 160 cm
Weight1.700 kg
Power Supply240 V
Total power3,5 Kw

Description

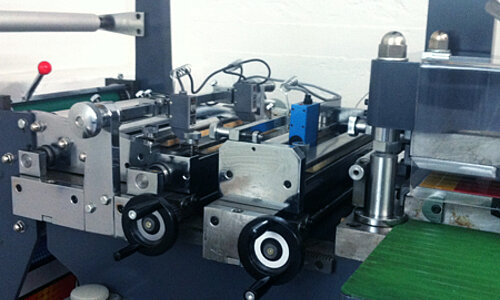

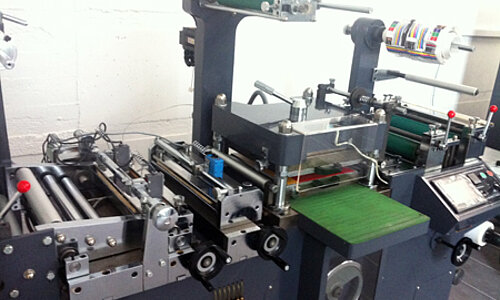

The JORG Label Finishing Pro is a web-fed finishing system in a robust and compact design, which makes it ideally suited to the production of high-quality labels for mediumsize print runs. The die cutting system works on the flatbed principle and can alternatively be adapted for hot stamping and hologram production, an interesting feature that is especially useful for making wine labels with a metallic effect. All key functions of this machine are computer monitored and can be viewed on a touchscreen display. The drive system is servo-controlled and photocells are used to continuously monitor the alignment of the substrate web. Any corrections that are required can easily be made via the operating menu. An integrated cold laminating unit, a waste removal rewinder, a sheeter and a label rewinder complete the high performance features of the JORG Label Finishing Pro.
73
JORG Label Finishing Pro
