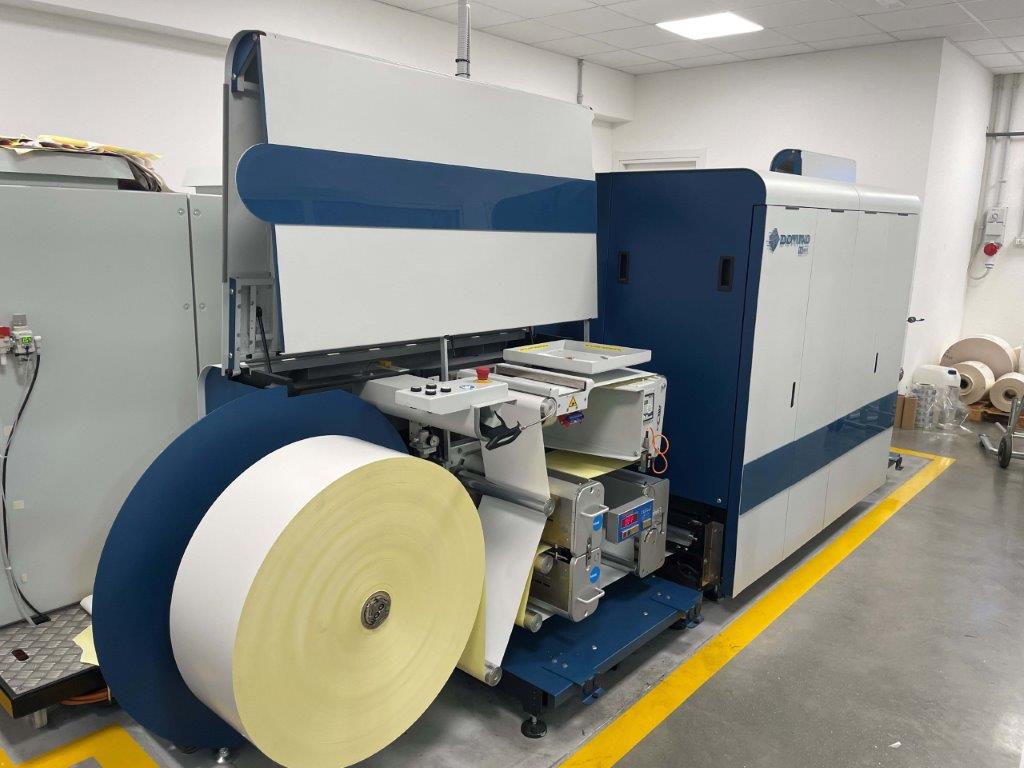

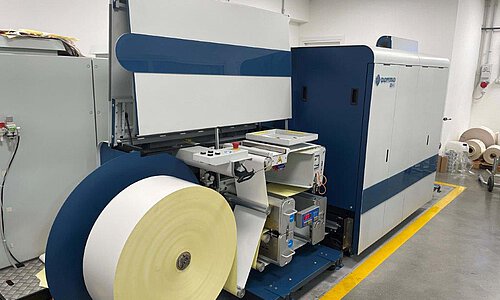

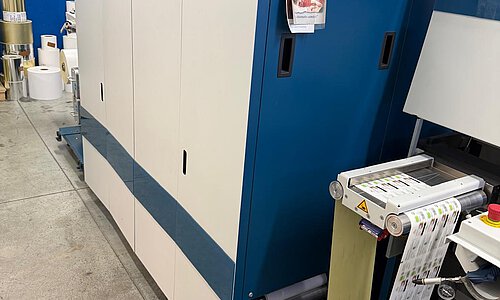

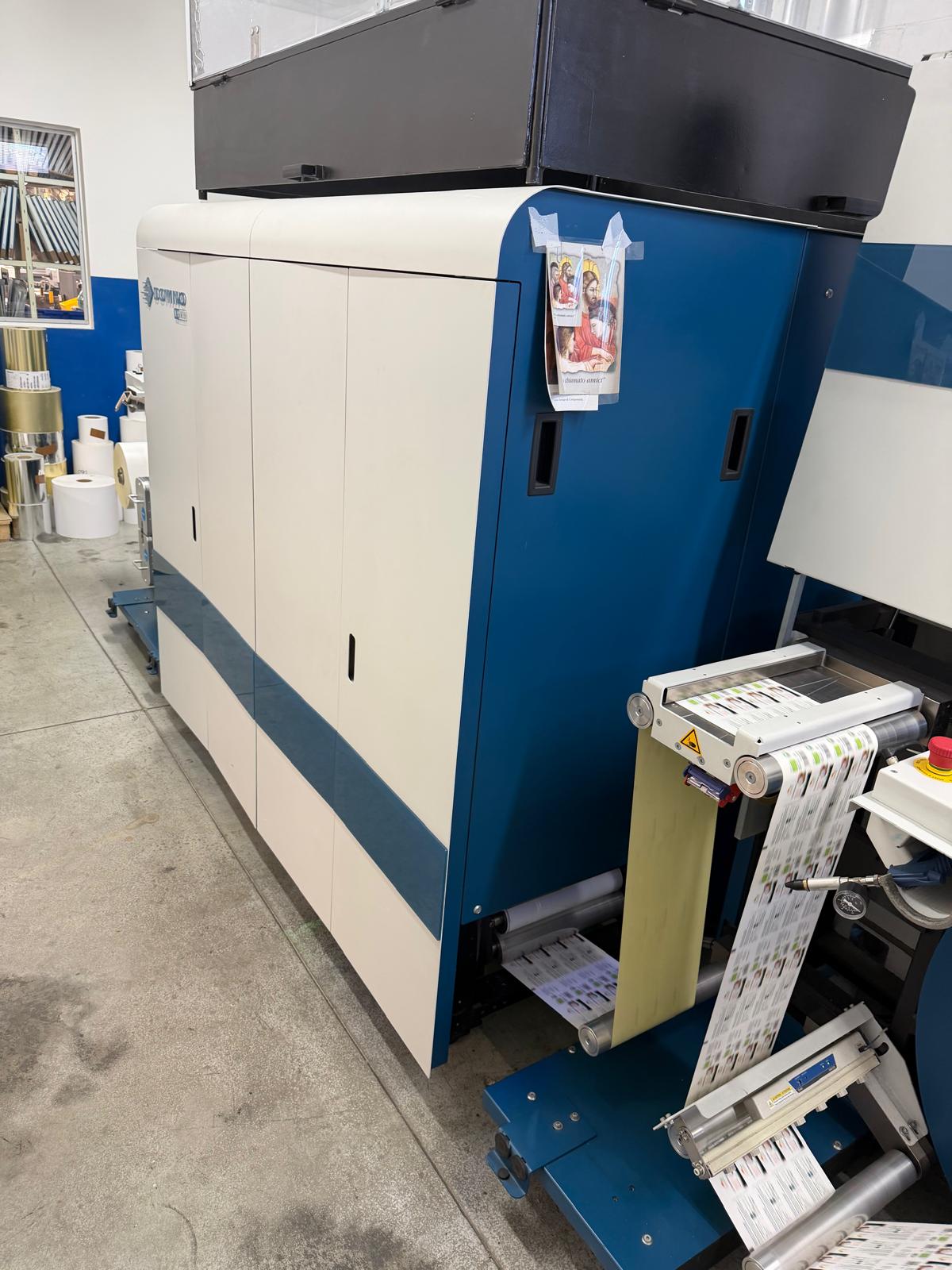

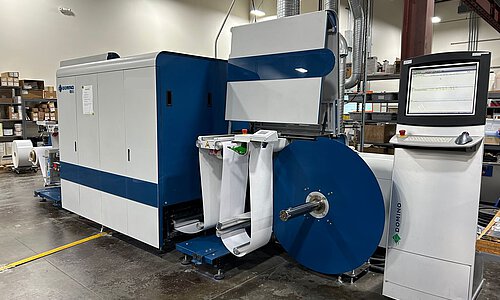

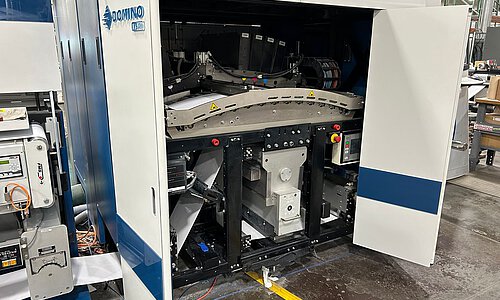

Domino N610i / UV Inkjet
First InstallationMarch 2018
Year of manufacture2018
Print-TechnologyKyocera Drop on Demant Inkjet-Technology

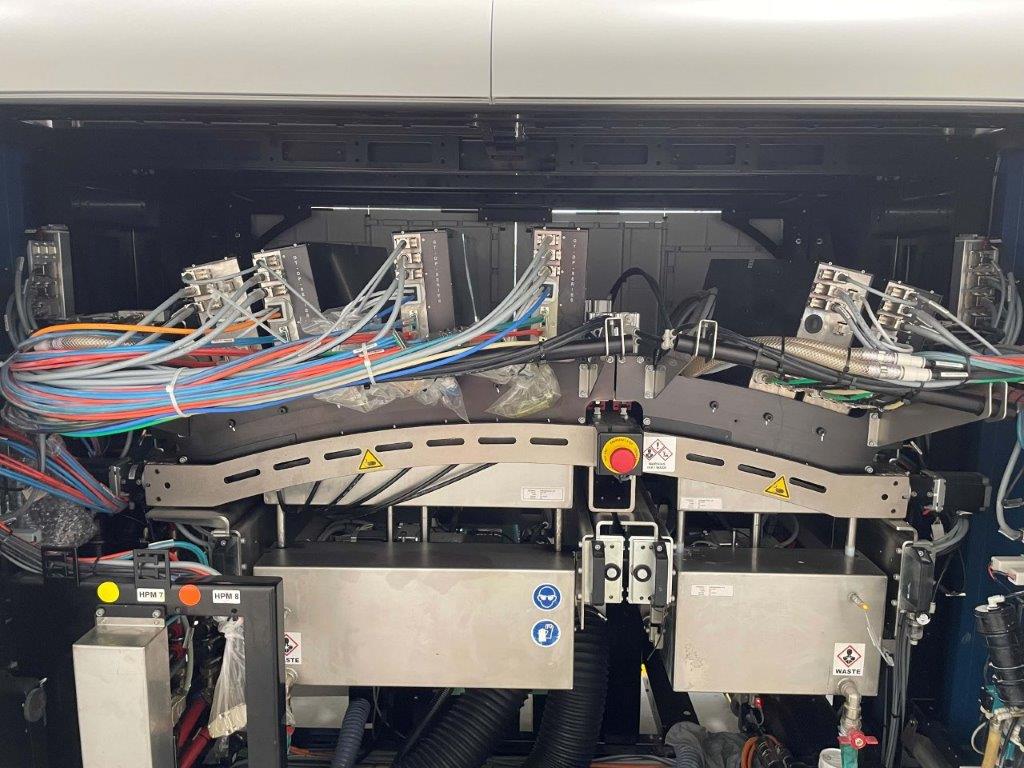

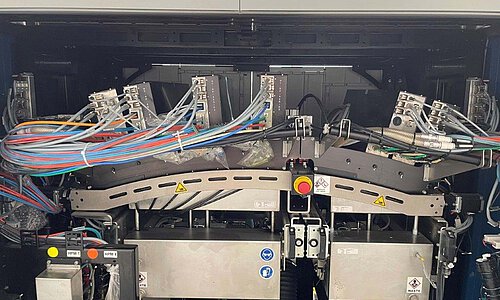

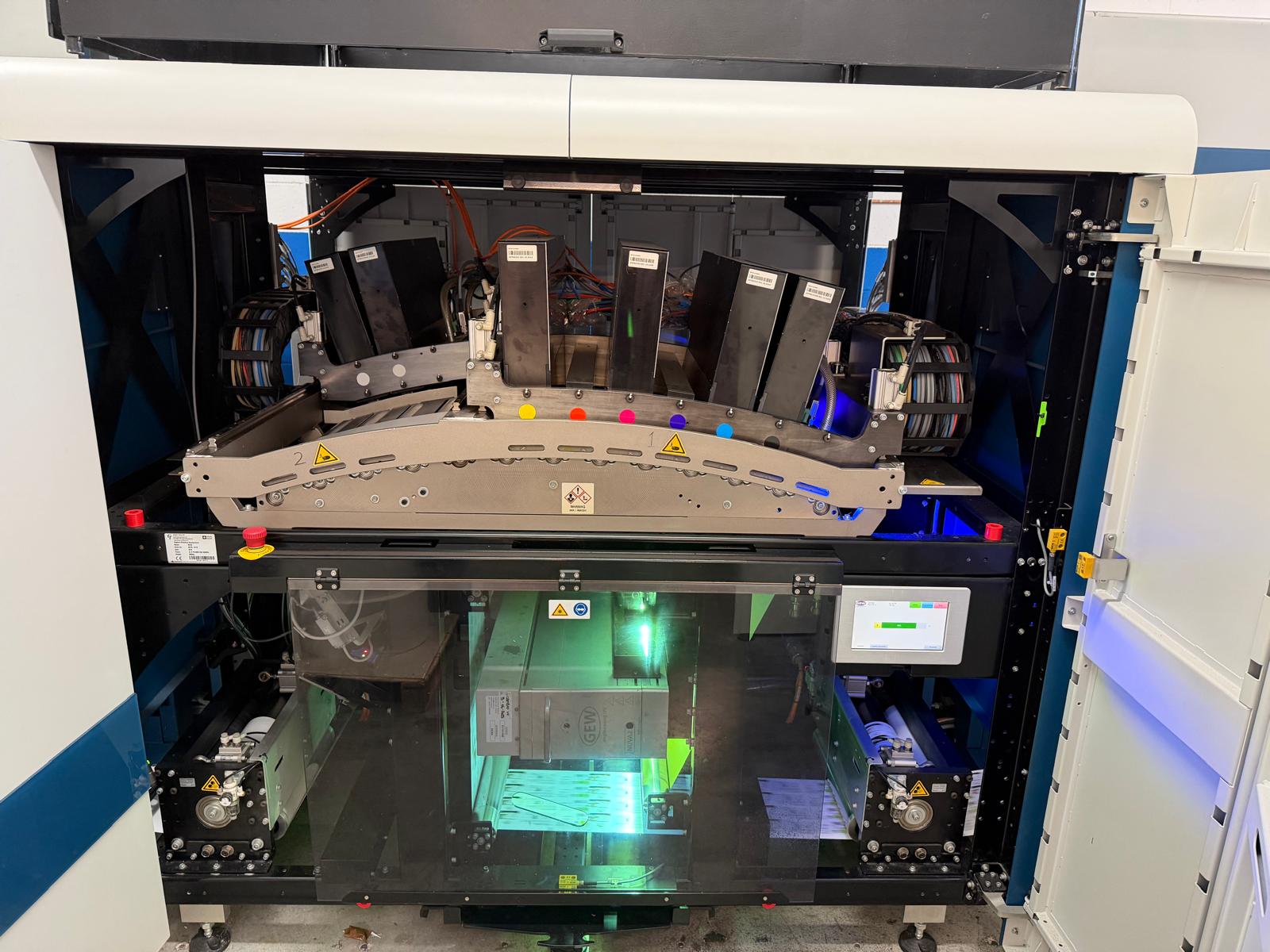

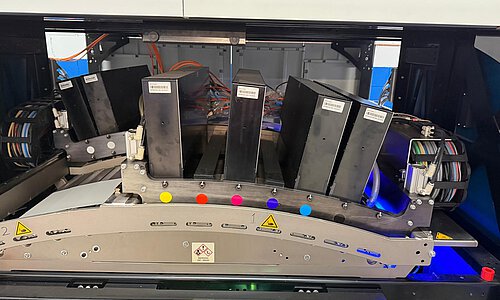

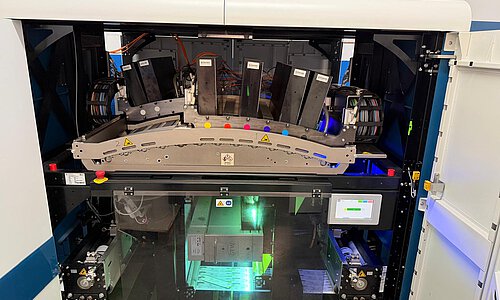

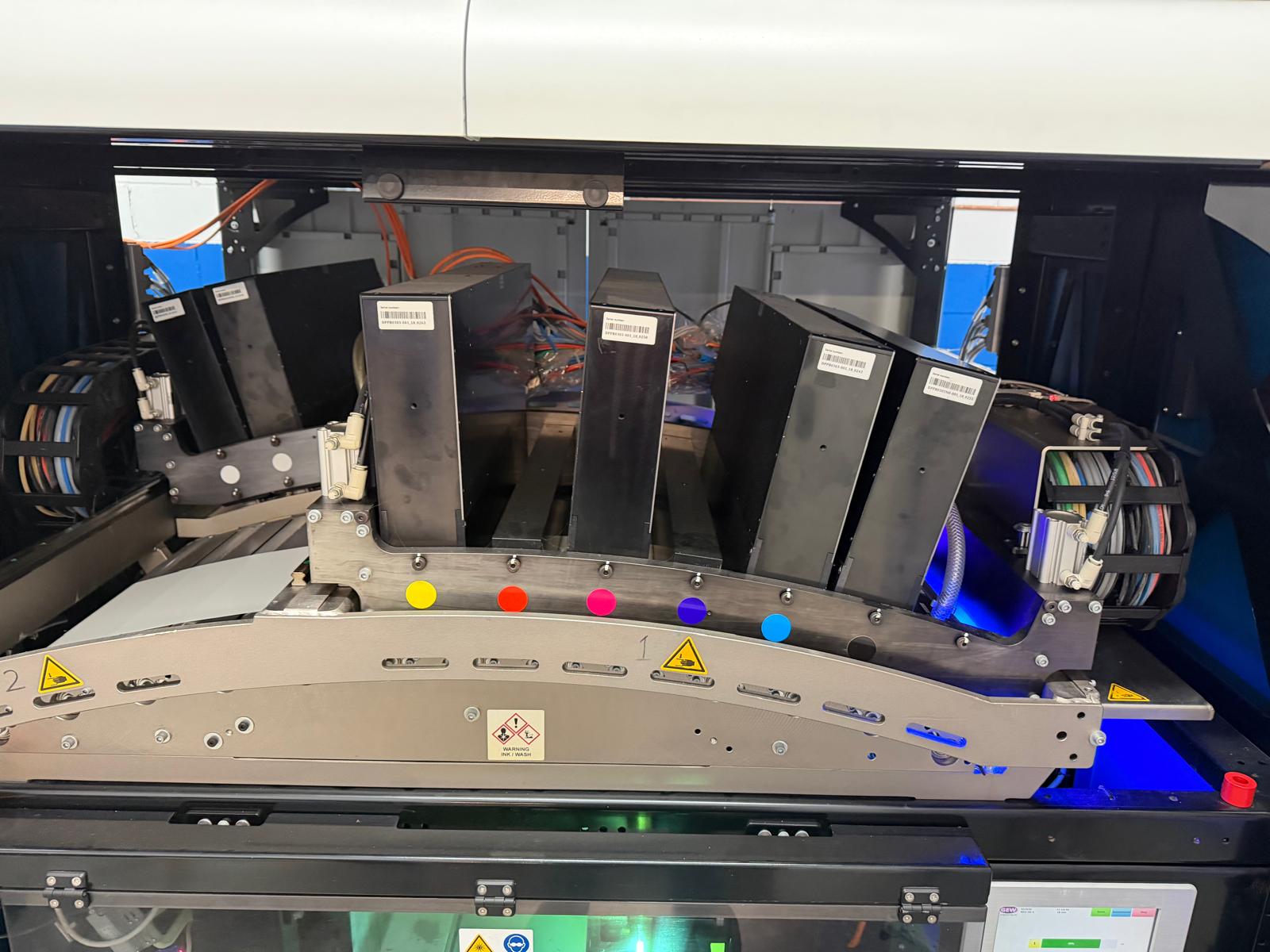

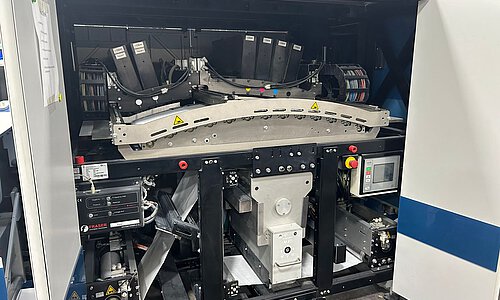

Number of Heads18 x Kyocera Micro Piezo Printheads | 4 x Heads new
Ink TypeUV curable inks, ensuring durability and scratch resistance
ColoursCMYK + White + White
Resolution600 dpi, includig 4 greyscales (nominal 1340 dpi)
Web Width200-340 mm
Print Width up to 333 mm
Image Widthmax 330 mm
Printing Speedup to 75 m/min
Media TypesPolyethylene, polypropylene and paper self adhesive label stock, selected unsupported materials (films)

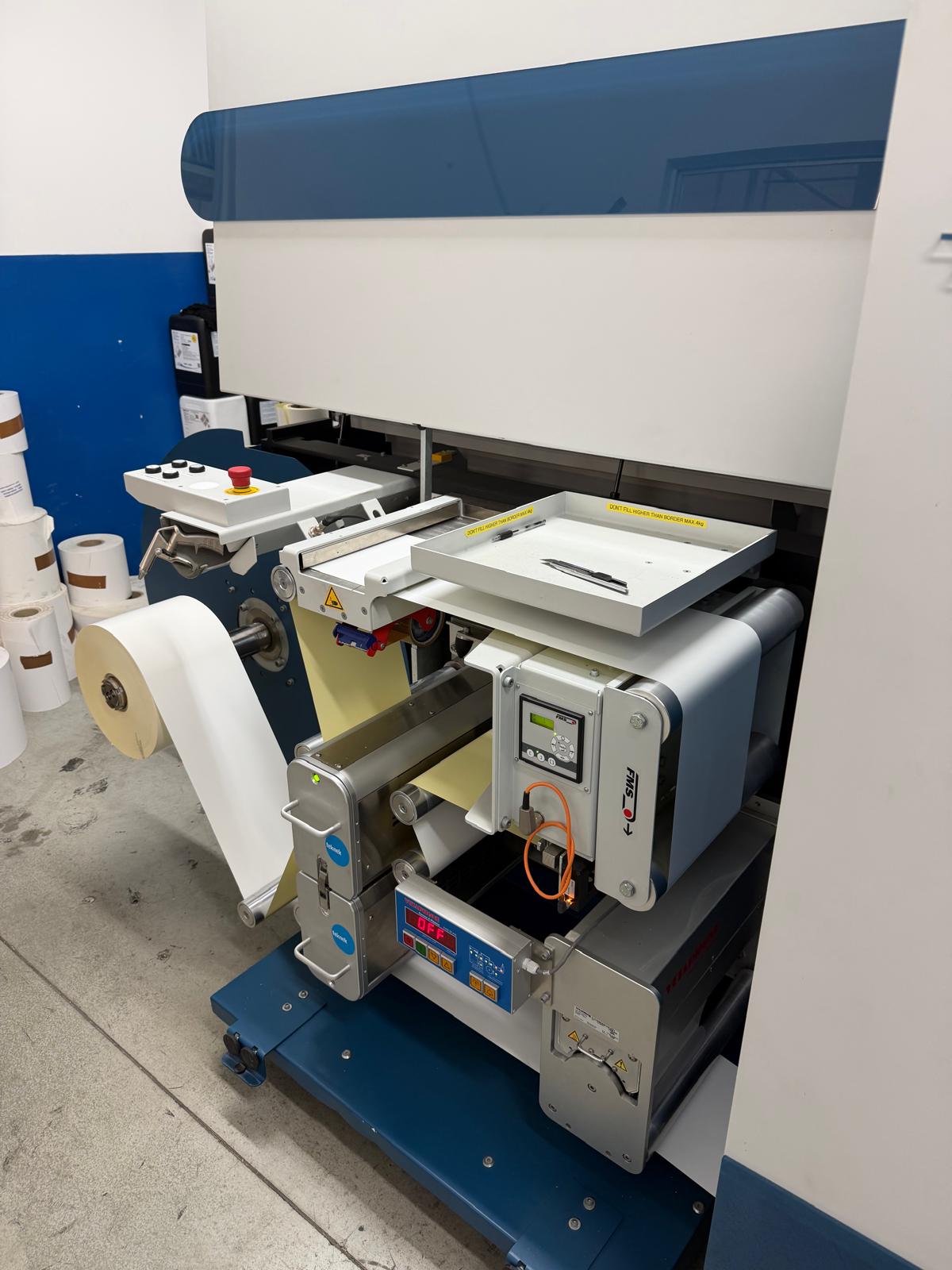

Unwinder Capacity1000 mm

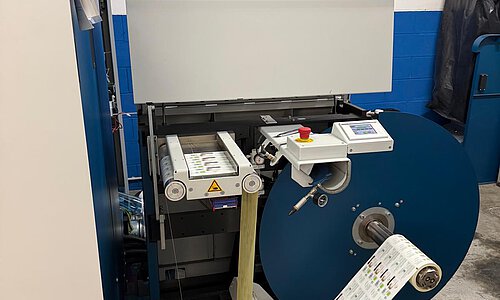

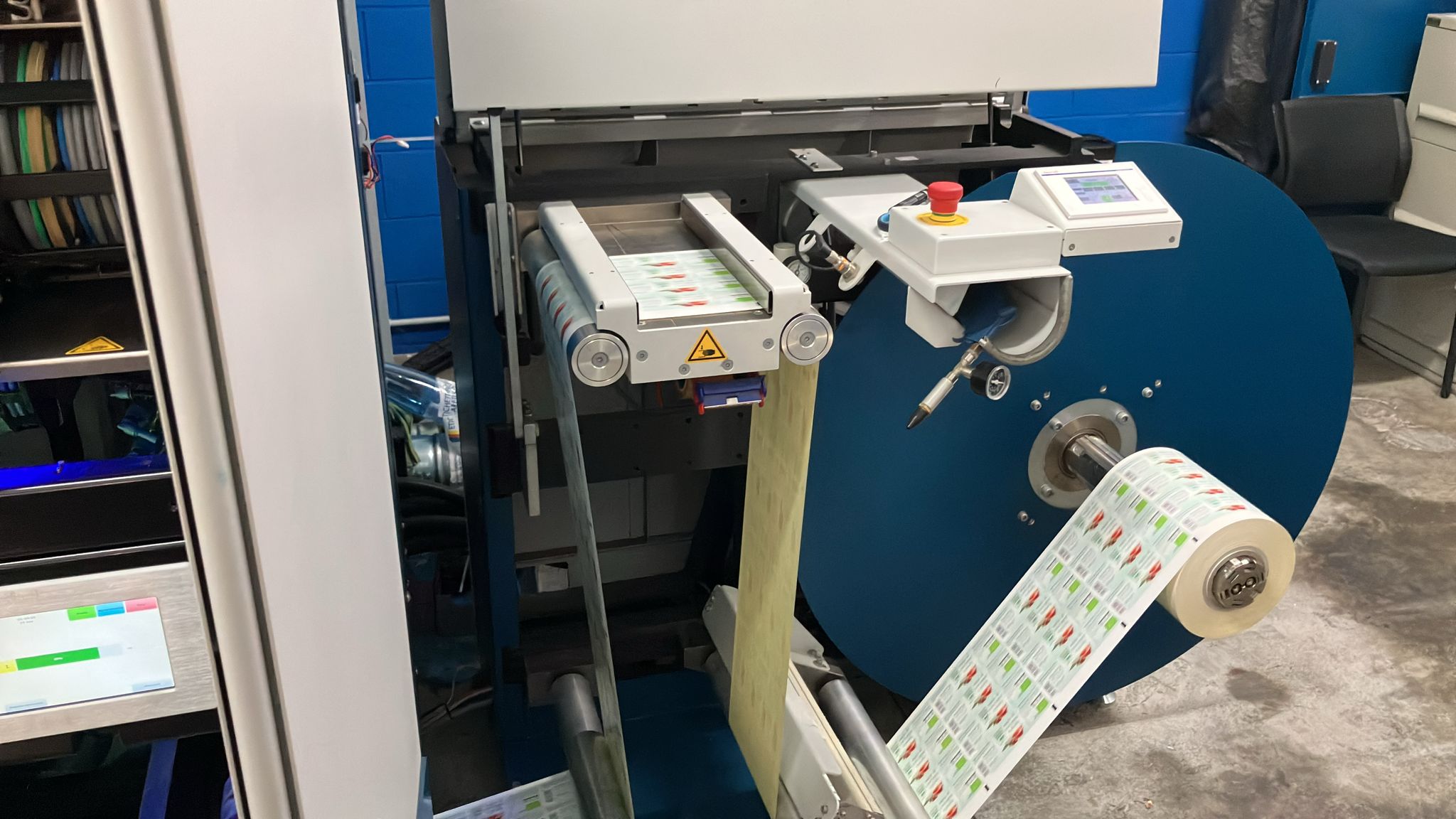

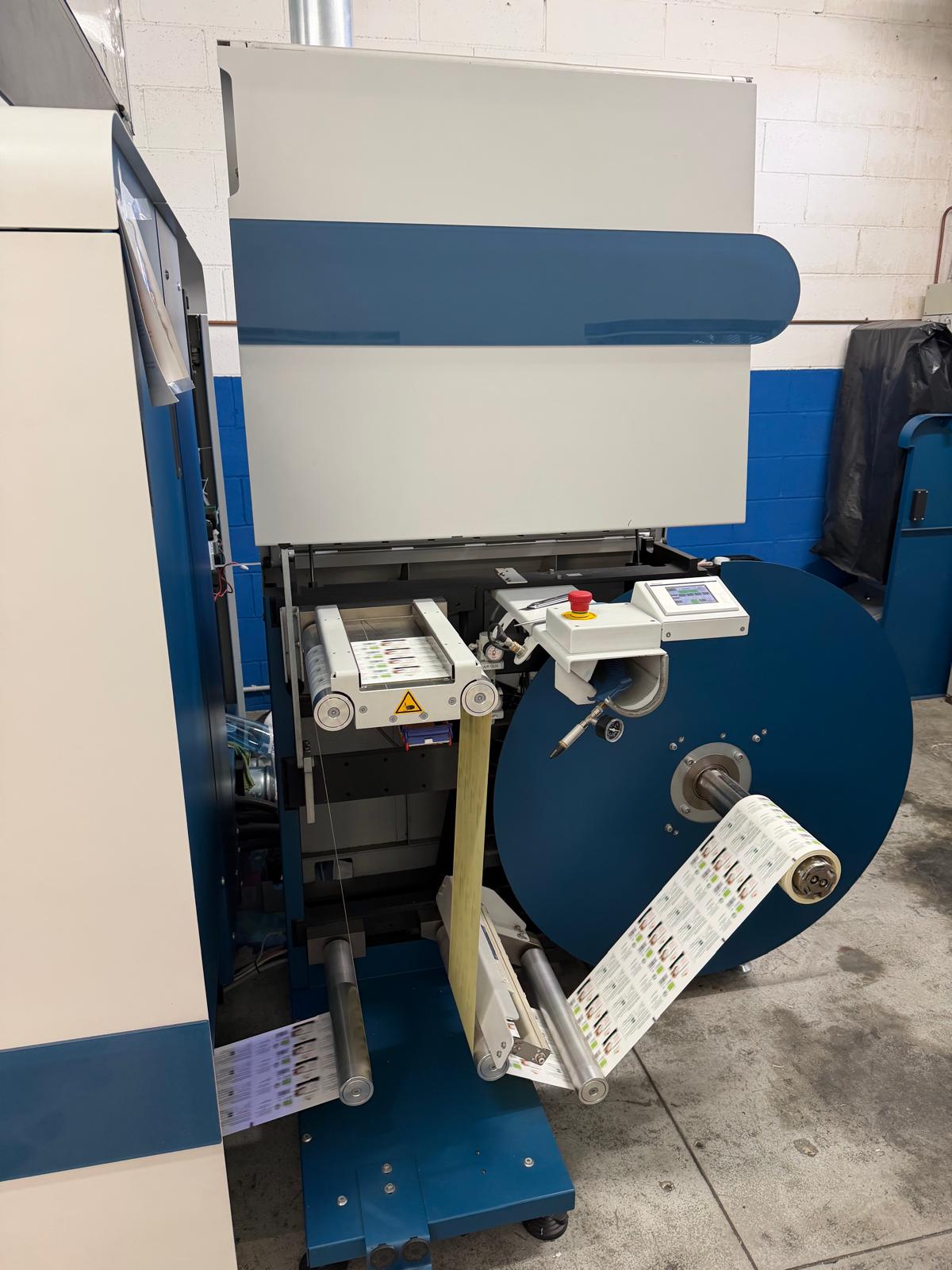

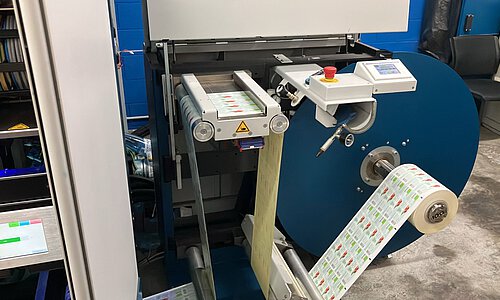

Rewinder Capacity1000 mm
Description

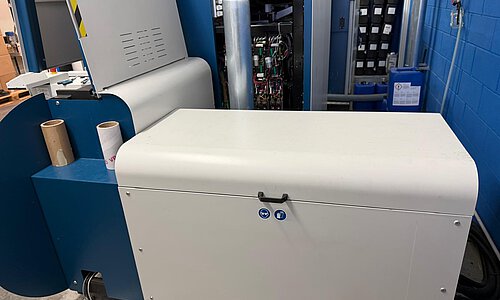

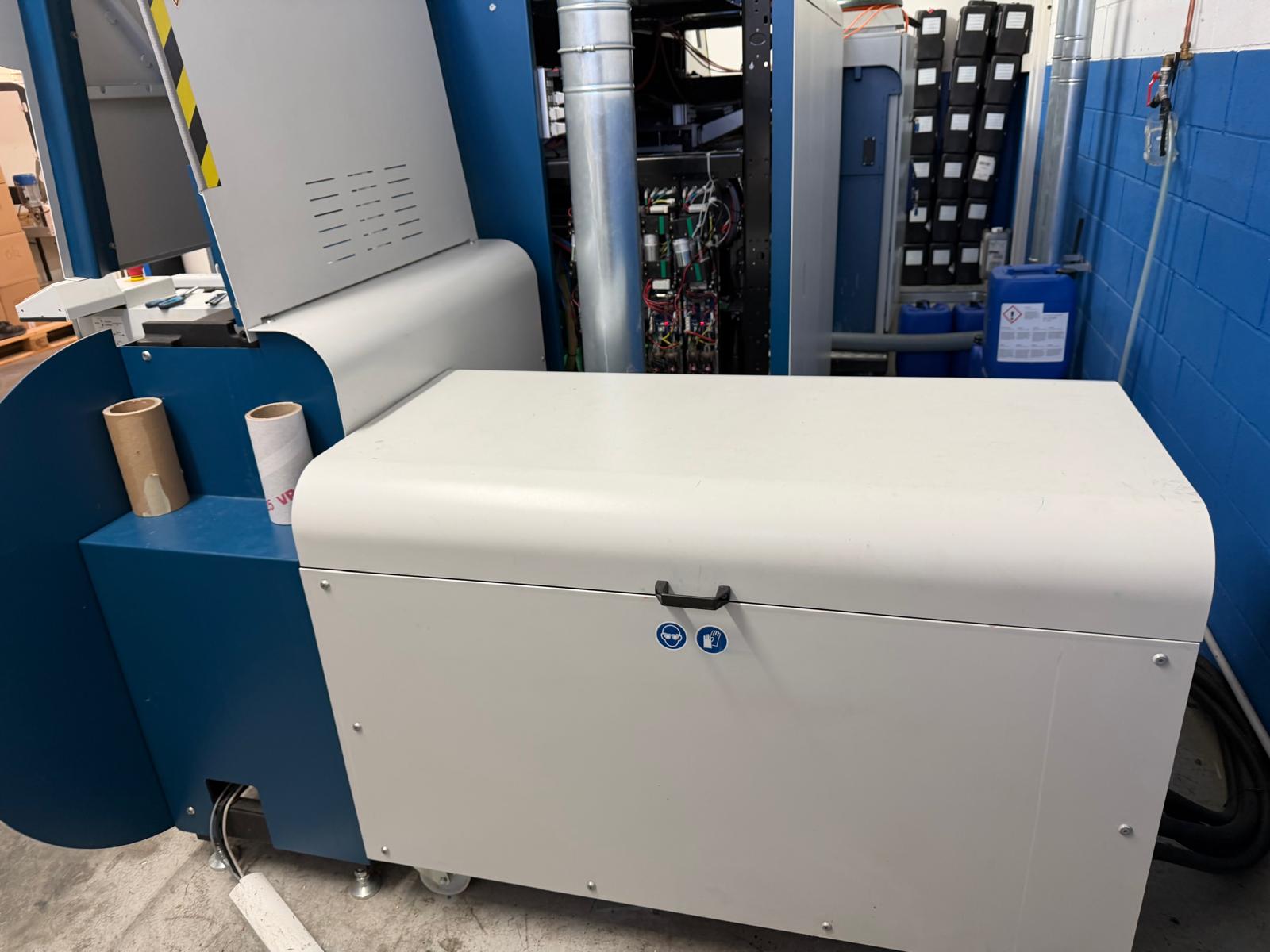

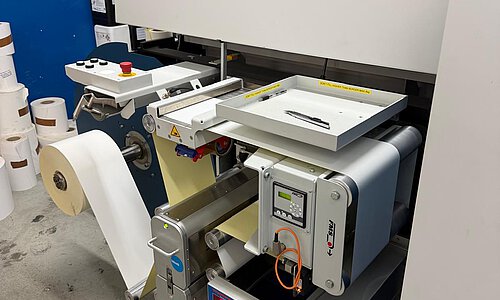

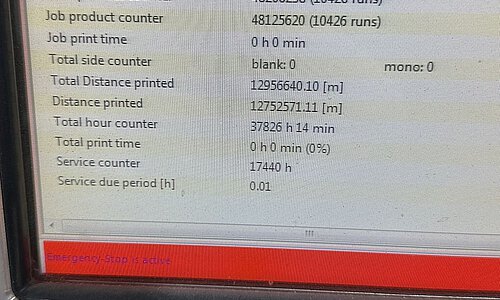

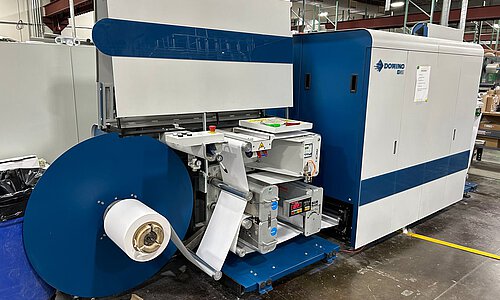

First commercial installation: February 2019, Operating hours: 6.110 (status November 2025), Vetaphone Corona Treatment, Web Guide Module, Web Cleaning, Anti-Static Control, Rewind Unit with max 1.000 mm diameter, Drying System: Integrated UV Curing System for instant drying and handling, Color Control System: Ensures consistent color quality across different jobs and substrates, Remote Diagnostics & Support: Access to remote diagnostics for quick troubleshooting and minimal downtime, Environmental Compliance: Energy-efficient operation with eco-friendly inks, Digital Front-End with ESKO-RIP Vers. 2.2, Machine Dimensions: W 570 cm D 200 cm H 180 cm, Ink Cabinet Dimensions: W 120 cm D 52 cm H 81 cm, Machine is still in production, The machine is expected to be available by the end of February 2026
