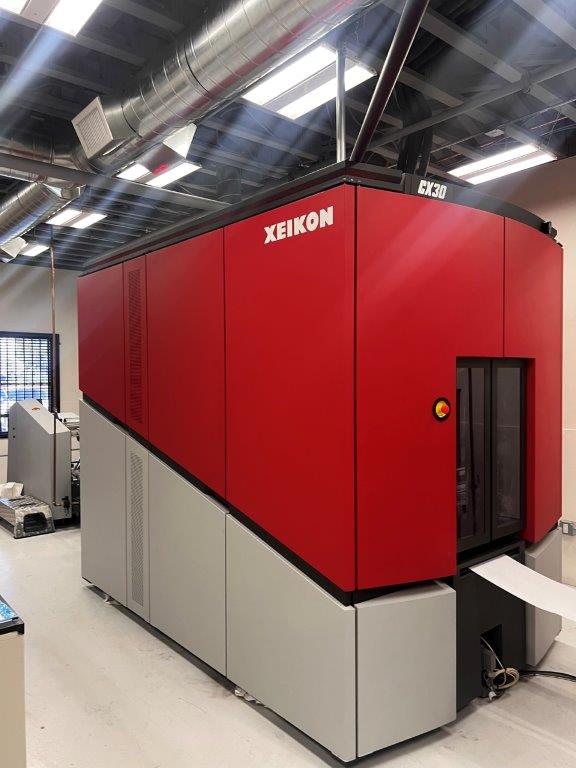

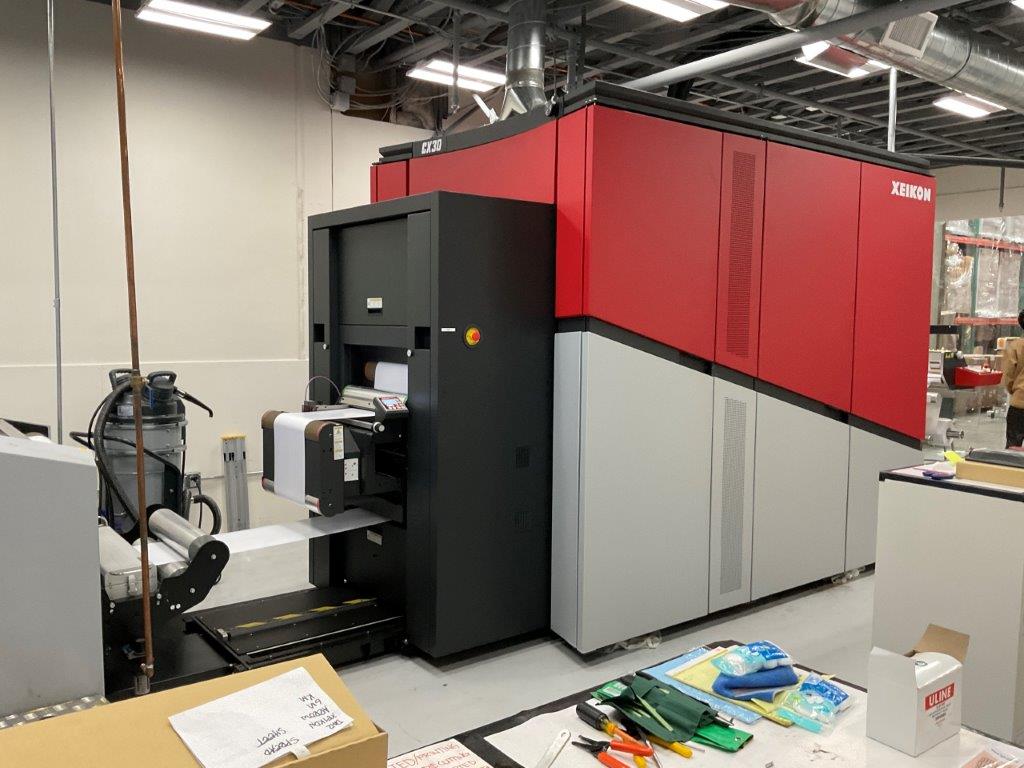

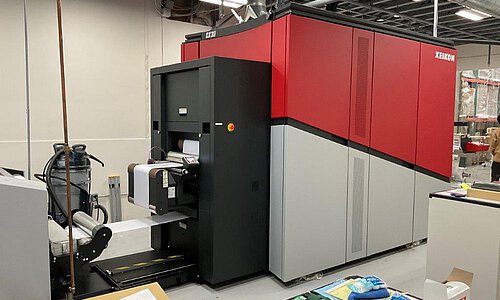

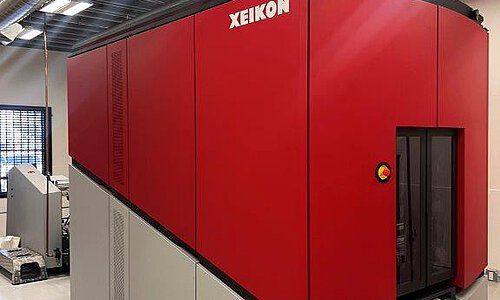

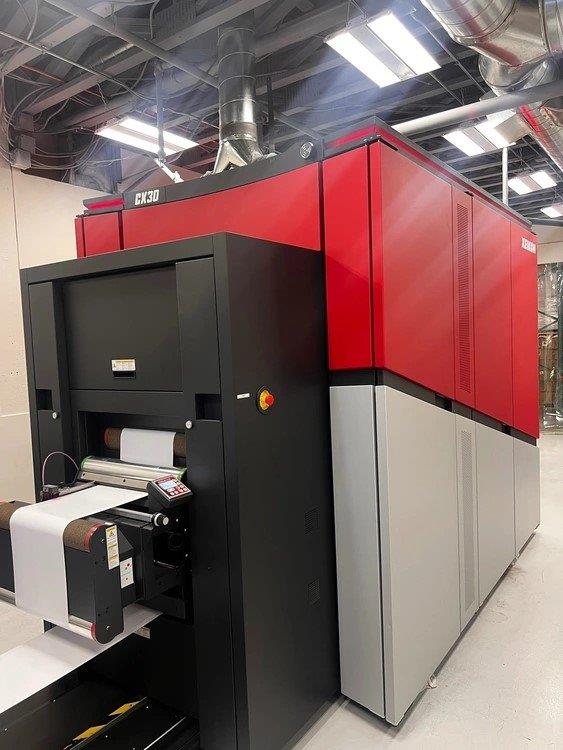

Xeikon CX30

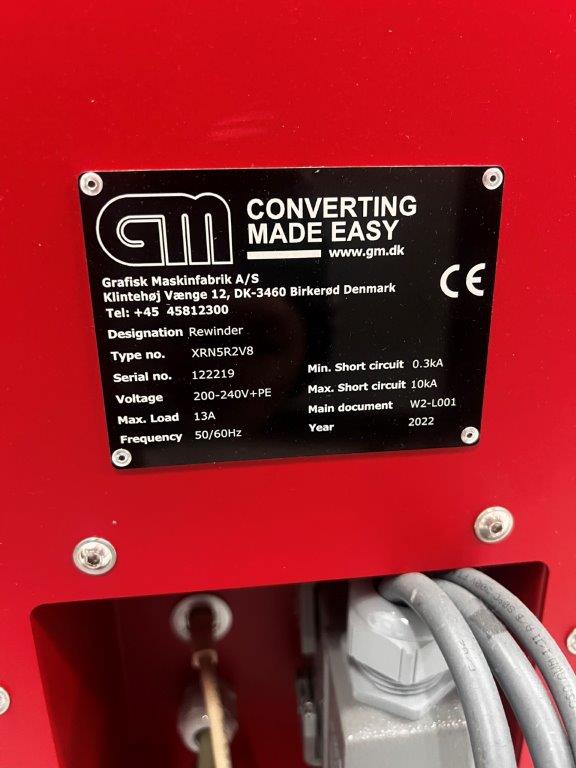

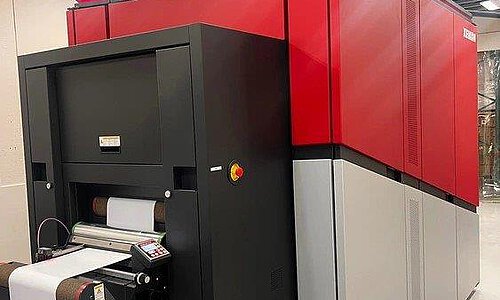

Modular series of presses based on the latest Cheetah 2.0 technology, Excellent investment / capacity ratio, Top OEE performance, Top printing speed of 20 m/min in 5 colour mode (upgradeability to 30 m/min), Substrate width of max 330 mm (upgradeability to 520 mm), Full rotary printing / variable repeat, Widest application and substrate range, Superior image quality, 5th colour station for spot colour reproduction and security applications, Year of manufacture 2022, First Installation November 2022, ONLY 400 hours (run) and 2.000 hours (idle), Electrography using Xeikon QB-I or QB-IC dry toner (for food contact), 5 x High-Precision LED-Printing Heads (CMYK + White or spot colour), Density Control | Inline Spectrophotometer, Screening | Pericles screening library up to 240 lpi, Unwinder with max 1.500 mm diameter, Rewinder with max 600 mm diameter, Media Width: 200 - 330 mm | Printing Area: max 322 mm x 42 m, Media Weight: 40 - 350 gsm (40 - 550 Microns), Speed up to 20 m/min, Resolution: 1.200 dpi with variable dot density, Substrates: SA or PS Label Media (Paper, PP, PE**, PET, Vinyl, co-extruded film), Paper, Paperboard, Transfer substrate, unsupported BoPP and oPP film for IML*, Specific materials like metallic and vinyl substrates require a standard coating, ** Printable with QB-IC ICE Toner or Cheetah Toner, Digital Front-End X 800 with Control PC and 2 monitors, Xeikon Workflow X 800 with X-800 My Press Controller, Cooling Unit, Machine is still in production for small runs, Machine is still under Xeikon Service Contract
